Description
Note: This item does not comply with the 2014 Lead Free Act. It may not be used in potable water applications as of January 4, 2014. For potable water applications 0121528 is recommended.

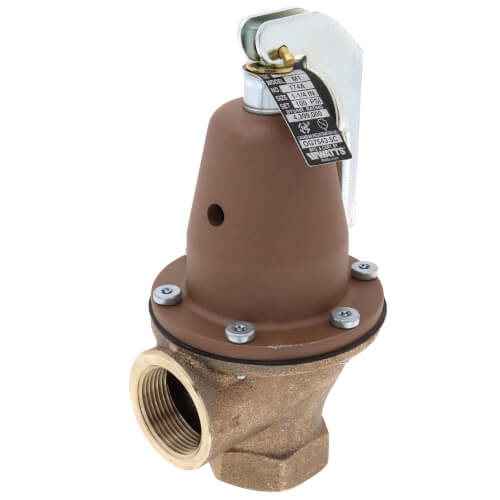

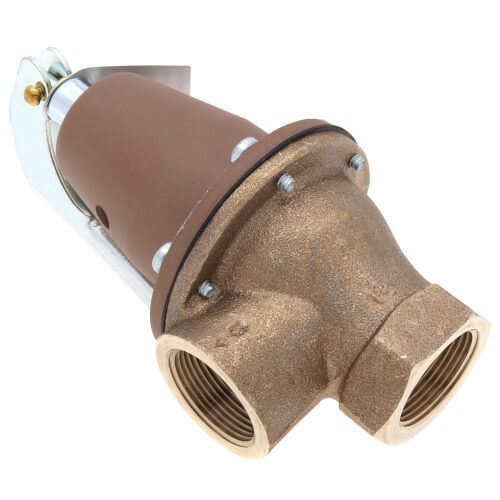

This 1-1/4" boiler pressure relief valve is used in hot water heating and domestic supply boiler applications to protect against excessive pressures on all types of hot water heating supply boiler equipment. It consists of a bronze body construction with NPT threaded female inlet and NPT threaded female outlet (drain) connections, non-metallic disc-to-metal seating, stainless steel spring, and test lever. It resists corrosive water conditions, sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief, not as an operating control. The pressure relief is set at 100 psi (689.5 kPa) with corresponding high pressure ratings up to 4,399,000 BTU/hr.4,399,000 BTU/hr.

Features:
  • Spring loaded
  • Automatic reseating
  • Bronze body construction
  • Set at 100 psi
  • ASME
Read more
Manuals (1)
Specs
Size:
1-1/4"
Pressure Set Point:
100 psi
Capacity:
4399000 BTU/hr
Material:
Bronze
Application:
Heating
Thread Type:
Female
Temperature Range (F):
250°F Max
Connection Type:
Threaded
ASME:
Yes
×
