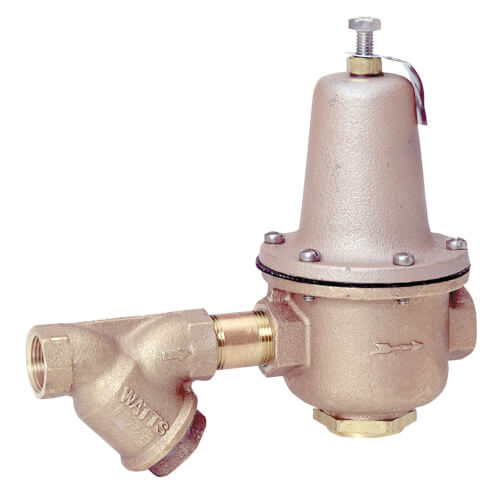

2" LF223S Lead Free High Capacity Pressure Valve w/ Strainer
Hover image to zoom

2" LF223S Lead Free High Capacity Pressure Valve w/ Strainer

Brand:
Watts
SKU:
0298594
Rating:
(0)
Q&A:
(0)
2" LF223S Lead Free High Capacity Pressure Valve w/ Strainer
Hover image to zoom
$6,856.52 each
Out of Stock
Out of Stock
Get it Tue, Apr 11 - Thu, Apr 20

Lift Gate

This product weighs 34.1875 lbs. and may require the use of a lift gate. If you do require a lift gate at your delivery, you'll have the option to add this FREE of charge when you checkout.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

Material icon
Bronze
Max Pressure (PSI) icon
75 PSI
Min Pressure (PSI) icon
25 PSI
Inlet Type icon
FNPT
Outlet Type icon
FNPT
Size icon
2"

Description

Series LF223, LF223S High Capacity Water Pressure Reducing Valves are used in commercial, industrial, and institutional applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a bronze body construction (2 1/2 in. is iron), enlarged diaphragm, spring cage and seat orifice for super capacity, sealed spring cage for waterworks pit installations and an optional thermal expansion bypass. Available with NPT threaded female inlet and NPT female threaded outlet with (LF223-S) or without (LF223) strainer. Maximum Working Pressure: 300psi (21 bar), Adjustable Reduced Pressure Range: 25 to 75psi (172 to 517 kPa), Standard Pressure Setting: 50psi (345 kPa).

Specs

Size:

2"

Material:

Bronze

Pressure Range:

25 to 75 psi

Lead Free:

Yes

Min Pressure (PSI):

25

Max Pressure (PSI):

75

Inlet Type:

FNPT

Outlet Type:

FNPT

Application:

Heating

Max Inlet Pressure:

300 PSI

Temperature Range (F):

33°F to 160°F
