Description

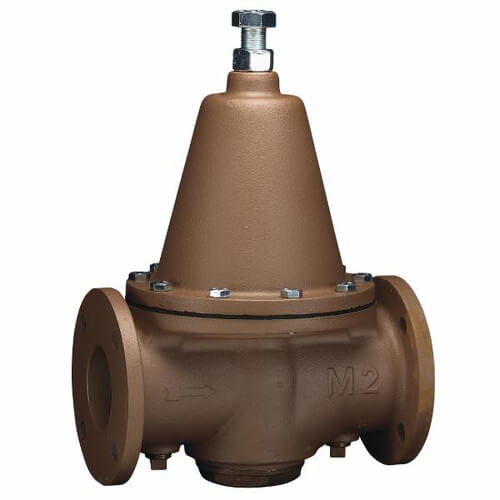

Series LFN223F Super Capacity Water Pressure Reducing Valves is designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. This series is suitable for water supply pressures up to 175psi (12.1 bar) and may be adjusted from 25 – 75psi (172 – 517 kPa). The standard setting is 50psi (345 kPa). Series LFN223F features an enlarged diaphragm, spring cage and seat orifice for super capacity performance. These valves also contain a semibalanced piston feature to assure rapid response to reduced pressure changes as well as to provide maximum flow with minor pressure drop.
Read more
Specs
Size:
3"
Material:
Iron
Lead Free:
Yes
Outlet Type:
Flanged
Inlet Type:
Flanged
Pressure Range:
25 to 75 psi
Application:
Heating
Max Pressure (PSI):
175
Temperature Range (F):
33° to 160°F
×
