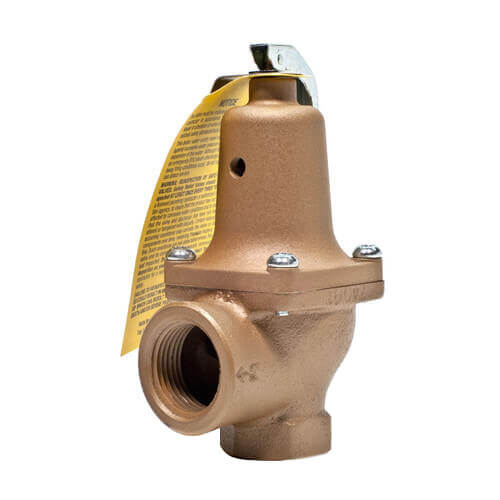

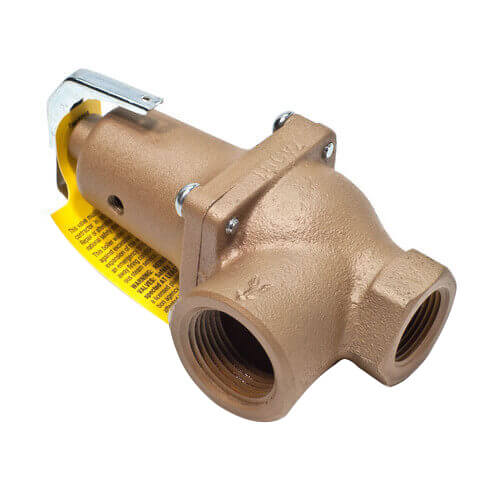

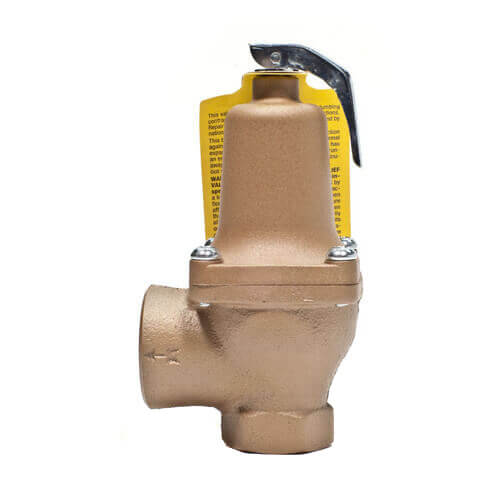

2" x 2-1/2" Boiler Pressure Relief Valve (60 psi)

This Series 740 Boiler Pressure Relief Valve is used in hot water space heating boiler applications to protect against excessive pressure on all types of hot water space heating boiler equipment. It consists of an iron body construction with expanded outlet drain connections for hot water space heating boilers, non-metallic disc-to-metal seating, stainless steel spring, and test lever. It offers large discharge capacity, resists corrosive water conditions, resists sticking and freezing, and prevents water and sediment from being trapped in the seat. It is designed for emergency safety relief and shall not be used as an operating control.
Features:

• Seat located above drain; water can't be trapped and sediment can't foul seat.
• Non-mechanical seat-to-disc alignment will not stick or freeze.
• Water seal of high temperature resisting material isolates spring working parts from water during relief

Specifications:

• Pressure: 60 psi
• Maximum Temperature: 250 F (121 C)
