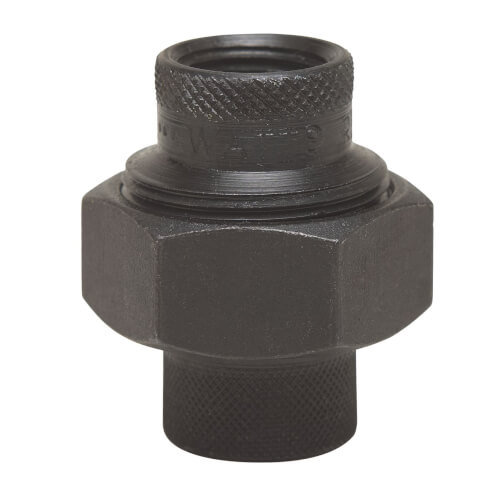

2" LF3006 FIP x FIP Dielectric Union (Lead Free)

This 2 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female iron pipe thread to female iron pipe thread (black) connections, union nut, two tailpieces, and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 180 degrees F (82 degrees C) at 250 psi (17.2 bar).
Series LF3006 Dielectric Unions feature a female iron pipe thread to female iron pipe thread (black). These unions are designed to be installed between pipe made from dissimilar metals to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. The LF3006 features Lead Free construction to comply with Lead Free* installation requirements.



Features

• Female iron pipe thread to female iron pipe thread (black)
• Designed and manufactured to the highest quality standards
• Individually factory certified to withstand a minimum of 600 volts on a dry line with no flashover
• Rated to 180°F (82°C) at 250psi (17.2 bar)

Specifications:

• Adapter Material: Malleable Iron
• Gasket Material Buna-N
• Gasket Maximum Pressure: 250 PSI
• Gasket Maximum Pressure-BAR: 17.20
• Gasket Maximum Temperature: 180 Degree F
• Inlet Connection Size: 2 IN
• Inlet Connection Size-Metric: 50 MM
• Inlet Connection Type: Female Threaded
• Inlet Material: Iron
• Inlet Thread Type: NPT
• Insulator Material: Polysulfone
• Lead Free: YES
• Maximum Working Pressure-PSI: 250
• Maximum Working Temperature-Fahrenheit: 180
• Nut Material: Malleable Iron
• Outlet Connection Size:22 IN
• Outlet Connection Type: Female Threaded
• Outlet Material: Iron
• Outlet Thread Type: NPT
