$154.83 each
Backorder
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Yes
250 MAX PSI
180°F Max Temp
2" Connection
Malleable Iron
NPT
Description
–

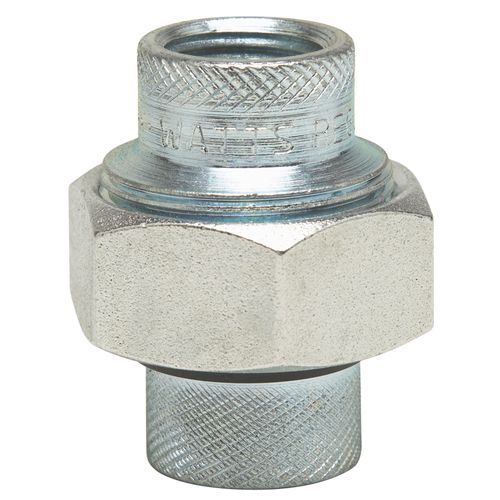

This 2 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a FIP thread to FIP thread (galvanized) connections, union nut, two tailpieces, and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 180 degrees F (82 degrees C) at 250 psi (17.2 bar).
Features
Features
- Buna-N gasket
- Maximum pressure is 250 psi (17.2 bar)
- Maximum temperature 180 degrees F (82 degrees C)
- FIP thread to FIP thread (galvanized) connections
Specs
–
| Connection Method: | Threaded |
|---|---|
| Lead Free: | Yes |
| Application: | Plumbing |
| Product Type: | Dielectric Union |
| Max Pressure (PSI): | 250 |
| Max Temp (F): | 180°F |
| Connection Size: | 2" |
| Material: | Malleable Iron |
| Outlet Type: | NPT |
| Size: | 2" |
| Connection Type: | FNPT x FNPT |
| Inlet Type: | NPT |
