$407.12 each
In Stock
Get 5 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (1)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Cast Iron
2-1/2"
No
FNPT x FNPT Connection
Female Thread Type
NPT
Description
–

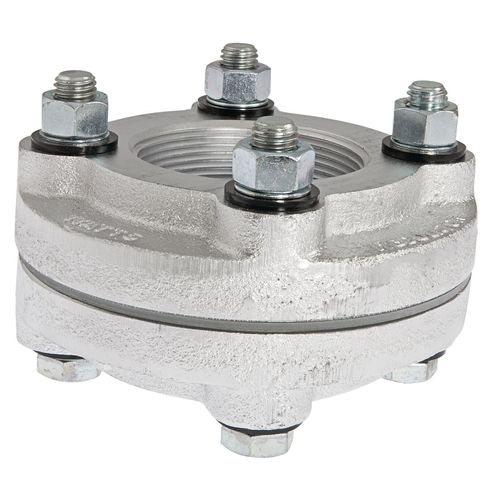

This 2-1/2" dielectric flange pipe fitting is designed for commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current from connections of dissimilar metals. Ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of an iron pipe threaded flange tailpieces with a Buna-N gasket and hardware. The maximum temperature is rated up to 180 degrees F (82 degrees C). The maximum pressure is rated at 175 psi (12.1 bar).
Features
Features
- Buna-N gasket
- Maximum pressure is 175 psi (12.1 bar)
- Maximum temperature is 180 degrees F (82 degrees C)
- Iron pipe thread connections
- Designed and manufactured to the highest quality standards
- Meet federal specifications for tensile strength and thread end connections
Specs
–
| Material: | Cast Iron |
|---|---|
| Size: | 2-1/2" |
| Lead Free: | No |
| Connection Type: | FNPT x FNPT |
| Thread Type: | Female |
| Inlet Type: | NPT |
| Product Type: | Dielectric Union |
