Product Highlights
–
3"
Flanged x Flanged Connection
Cast Iron
Description
–
77F-DI-FDA-125 2" to 12" (50 to 300mm) with flanged
connections and double coated, heat fused FDA approved
epoxy coating (interior and exterior) for water service only

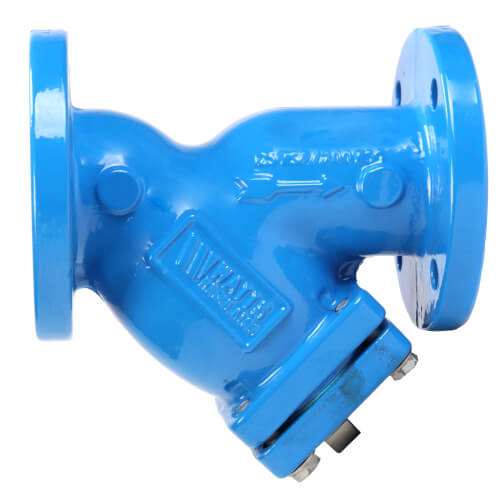

Series 77F-DI-FDA-125 Cast Iron, Flanged, Wye-Pattern Strainers feature an FDA approved epoxy coating inside and outside and is suitable for potable water and food contact applications. They feature a wye-pattern, Class B cast iron body with Class 125 flanged connections, stainless steel screen, bolted and tapped iron retainer cap with graphite gasket, and iron blow-down plug. Maximum Pressure (non-shock): 200psi (13.8 bar) @140°F (60°C) WOG.
FeaturesFlanges conform to American National Standards Institute,
Class 125 (ANSI B16.1) and WW-S-2739 Type 2
Cast iron body
304 Stainless steel perforated screens
Cast iron flanged retainer cap with gasket tapped
for closure plug
Drain/Blowoff connection furnished with closure plug
Series 77F-DI-FDA-125 comes with heat fused FDA
approved epoxy coating (interior and exterior)
Series 77F-DI-FDA-125 Cast Iron, Flanged, Wye-Pattern Strainers feature an FDA approved epoxy coating inside and outside and is suitable for potable water and food contact applications. They feature a wye-pattern, Class B cast iron body with Class 125 flanged connections, stainless steel screen, bolted and tapped iron retainer cap with graphite gasket, and iron blow-down plug. Maximum Pressure (non-shock): 200psi (13.8 bar) @140°F (60°C) WOG.
Features
Specs
–
| Size: | 3" |
|---|---|
| Connection Method: | Flanged |
| Connection Type: | Flanged x Flanged |
| Material: | Cast Iron |
