PWHIB10FF 10" Blue Full Flow Housing Kit with Pressure Relief, 1" NPT

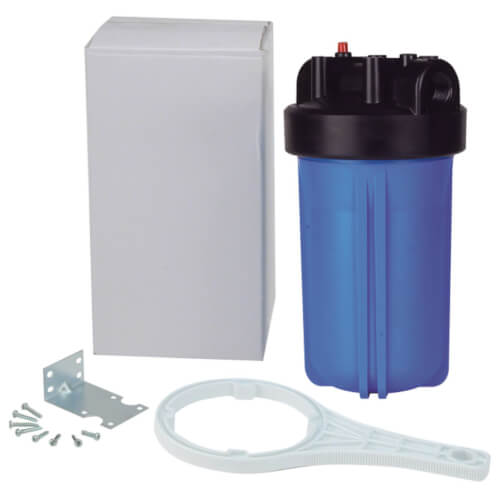

This 10 inch complete filter housing kit is designed for the Full Flow housing. It includes the housing with a pressure relief lid, wrench, single mounting bracket and all the mounting screws.

Features:

• 1" Port connection
• Includes pressure relief valve
• 10" long
• Blue housing with black lid
• Heavy-duty construction, made using high-quality grade polypropylene
• Buttress thread design for superior security
• Thick side walls with heavy-duty ribs to provide greater strength
• Temperature rated to 100° F

Specifications:

• Cap Color: Black
• Sump Color: Blue:
• Housing Finish: Smooth Plastic
• Housing Material: Polypropylene
• Size: 10"
• Type Full Flow
• Inlet Connection Size: 1" FNPT
• Outlet Connection Size: 1" FNPT
• Inlet/Outlet Connection Type: Female Threaded
• Lead Free: Yes
• Lid Closure Type: Screw-twist
• Max Pressure: 100 PSI
• Max Temperature: 100F
• Min Temperature: 40F
• Pressure Drop: 0.6 to 1 PSI based on the micron
