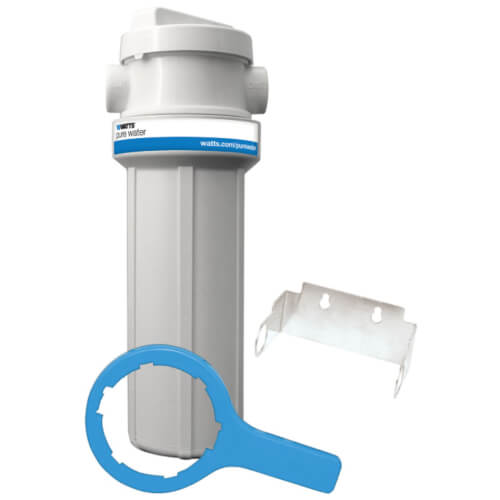

PWHIB34WVIH, 10" White Housing Kit with Valve in Head Pressure Relief, 3/4" NPT

This 10 inch white housing comes with a valve in head design cap for easy filter service in the bypass mode without the need for shutting off the water supply. It is great for whole house and other filtration applications. A 3/4 inch pipe size allows for greater plumbing compatibility. The heavy duty construction is made using a high quality FDA grade polypropylene. The housing lid features a buttress thread design for superior sealing and security. The thick side walls with heavy-duty ribs provide great strength. It is rated at temperatures up to 100 degree F (38 degree C) and the water pressure is rated up to 100 psi (6.9 bar). The cap, sump and top-seated O-rings are compressed to provide a leak proof sealing.

Features:

• Accepts standard 10IN filter cartridges
• Lid features a buttress thread design for superior sealing
• 3/4" port connections
• Built in three way valve in head

Specifications:

• Cap Color: White
• Sump Color: White:
• Housing Finish: Smooth Plastic
• Size: 10"
• Type Valve-In-Head
• Inlet Connection Size: 3/4" FNPT
• Outlet Connection Size: 3/4" FNPT
• Inlet/Outlet Connection Type: Female Threaded
• Lead Free: Yes
• Lid Closure Type: Screw-twist
• Max Pressure: 100 PSI
• Max Temperature: 100F
• Min Temperature: 40F
