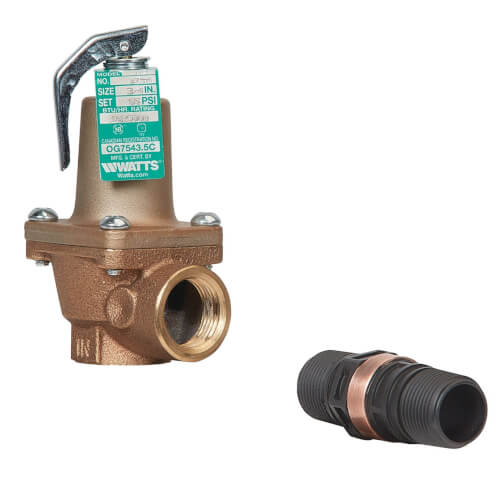

3/4" LF140X-5 Lead Free Relief Valve w/ Extension Thermostat w/ Flood Sensor Connectivity (150 psi)

This lead free automatically reseating temperature and pressure relief valve has a 3/4 inch NPTF female inlet, 3/4 inch NPTF female outlet, 5 inch coated thermostat, pressure relief setpoint of 150 psi, and temperature relief setpoint of 210 degrees F. This valve can be installed directly in tank tappings for commercial applications to provide protection for hot water supply tanks and hot water heaters. It features a lead free copper silicon alloy body, tamper resistant bonnet screws, and test lever. Includes a nonrestrictive discharge drain line flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. Sensor activation requires purchase of an activation kit which can be connected to existing building management systems or the Watts Cellular Gateway.

Features

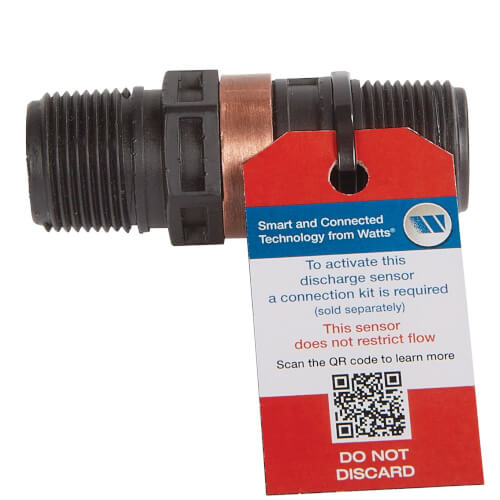

• Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
• Requires purchase of activation kit to activate sensor
• Lead free copper silicon alloy body
• Tamper resistant bonnet screws
• 3 Inch coated thermostat length
• Non-mechanical seat to disc alignment
• Set pressure 150 psi

Specifications

• Body Material: Lead Free Copper Silicon Alloy
• Inlet Connection Size: 3/4 IN
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPTF
• Lead Free: YES
• Maximum Temperature-Fahrenheit: 210
• Maximum Working Pressure-PSI: 112
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPTF
• Pressure Range: Does not apply to product
• Pressure Relief Setting-PSI: 150
• Protection Type: Temperature And Pressure
• Shank Length: Does Not Apply To Product
• Temperature Relief-Fahrenheit: 210
• Thermostat Material: Nylon Coated Copper
• Thermostat Probe Length: 5 IN
