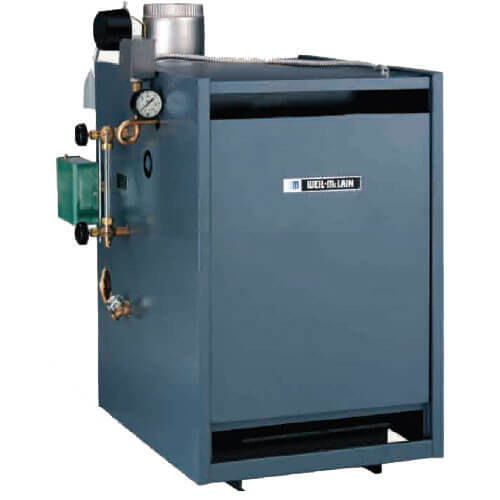

EG-40, 125,000 BTU Standing Pilot Steam Boiler (Nat Gas)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
118-404-360 has been discontinued
Discontinued February 15, 2013
This product was discontinued by the manufacturer.
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Suggested Alternative:
PEG-40 - 77,000 BTU Output Cast Iron Packaged Steam Boiler, Spark Ignition - Series 6 (NG PIDN)
Backorder
Get it Tue, Jul 7 - Thu, Aug 6
Product Highlights
–
78000 Max BTUs
Atmospheric
125000 BTUs
21-1/4" Width
33.75" Height
27-5/8" Depth
Description
–
Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.
Weil McLain EG boilers are high efficiency steam boilers with a variety of applications including: residential, light commercial, multiple boilers, indirect-fired water heating, and radiant heating.
Standard Features:
Steam Boilers Feature:
Weil McLain EG boilers are high efficiency steam boilers with a variety of applications including: residential, light commercial, multiple boilers, indirect-fired water heating, and radiant heating.
Standard Features:
- Factory-assembled section block
- Insulated extended jacket
- Horizontal to vertical draft hood
- Combination gas valve for 24 V
- Non-linting pilot burner
- Stainless steel burners
- Electrical junction box
- Spill switch
- Rollout thermal fuse element
- Limited 10 year warranty
Steam Boilers Feature:
- 15 PSI ASME relief valve
- High-limit pressure control
- Low water cut-off electrode type
- 40VA transformer
- Steam pressure gauge
- Syphon
- Gauge cocks and glass
- Plug-in circulator relay
Specs
–
| BTU Input: | 125000 |
|---|---|
| BTU Output: | 78000 |
| Efficiency: | 81.5% |
| Vent Size: | 6" |
| Gas Connection: | 1/2" |
| Water Connection: | 1-1/4" |
| Weight (lbs): | 500 lbs |
| Width (Inches): | 21-1/4" |
| Vent Type: | Atmospheric |
| Height (Inches): | 33.75" |
| Depth (Inches): | 27-5/8" |
| Supply Tappings (NPT): | 3" |
| Return Tappings (NPT): | 2-1/2" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
28 Replacement Parts
Main Burner Orifice, Natural Gas (245mm), 560-528-987
SKU: 560-528-987
Weil-McLainEG40-45 S/A - Tankless Opening, 321-811-110
SKU: 321-811-110
Weil-McLainBurner for EG, EGH Boilers (Steel Tube), 512-200-000
SKU: 512-200-000
Weil-McLainBack Base Panel: EG, P-EG-40, 45, 451-800-011
SKU: 451-800-011
Weil-McLainLeft Hand End Section w/o Heater Opening, 311-800-007
SKU: 311-800-007
Weil-McLainSpill Switch w/ Reset, 210°F, 510-300-013
SKU: 510-300-013
Weil-McLainIntermediate Section, 311-800-010
SKU: 311-800-010
Weil-McLainRetort Cement, 591-602-913
SKU: 591-602-913
Weil-McLainManifold EG-40, 591-125-534
SKU: 591-125-534
Weil-McLain1/2" Nut, Regular HEX, 561-928-221
SKU: 561-928-221
Weil-McLainBase Front Panel, 451-800-001
SKU: 451-800-001
Weil-McLainLeft Hand End Section w/ Heater Opening, 311-800-014
SKU: 311-800-014
Weil-McLain1/2" Tie Rod w/o Nut, 560-234-475
SKU: 560-234-475
Weil-McLainNeed help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Q&A
2 Questions2 Questions
Q: what is a termo cupleing where does go on your boiler
Asked by 15 years ago
Add your answer
Verified Reply- PexSupply StaffA thermocoupling is a sensor that tells the gas valve that there is a flame and it is open to open.
Was this review helpful to you?
Q: my house is 2100 sq feet how much btus do i need
Asked by 16 years ago
Add your answer
Verified Reply- PexSupply StaffUsually BTU output is determined by a technician or installer. It would depend on several factors including your location, the insulation in your house, and your total heat loss. This information would be necessary to get an accurate estimation.
