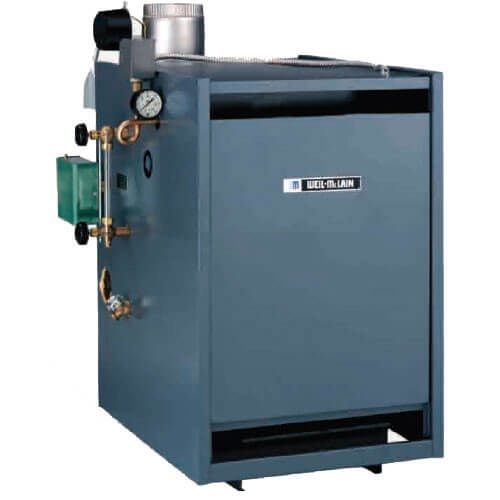

PEG-30, 47,000 BTU Output Standing Pilot PEG Packaged Steam Boiler (Nat Gas)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
119-304-320 has been discontinued
Discontinued November 30, 2012
This product was discontinued by the manufacturer.
MANUALS (5)
Schematic Feature!
Replacement Parts
Suggested Alternative:
PEG-30 - 47,000 BTU Output Cast Iron Packaged Steam Boiler, Spark Ignition - Series 6 (NG PIDN)
Backorder
Get it Fri, Jul 24 - Tue, Aug 25
Product Highlights
–
47000 Max BTUs
Natural Gas
Atmospheric
10 Year Limited (Cast Iron Sections), 1 Year (Parts) Warranty
Steam
75000 BTUs
Description
–
Heating equipment must be installed, commissioned, and serviced by a licensed and qualified professional in accordance with manufacturer instructions, applicable codes, and industry standards. Manufacturers do not accept warranty or technical support requests from homeowners or unlicensed individuals. All warranty and technical inquiries must be initiated by the licensed professional responsible for the installation.
Weil McLain PEG boilers are high efficiency steam boilers with a variety of applications including: residential, light commercial, multiple boilers, indirect-fired water heating, and radiant heating.
This package contains:
Standard Features:
Steam Boilers Feature:
Weil McLain PEG boilers are high efficiency steam boilers with a variety of applications including: residential, light commercial, multiple boilers, indirect-fired water heating, and radiant heating.
This package contains:
- PEG-30 standing pilot steam boiler
- 5" vent damper
- EG-30 draft hood
Standard Features:
- Factory-assembled section block
- Insulated extended jacket
- Horizontal to vertical draft hood
- Combination gas valve for 24 V
- Non-linting pilot burner
- Stainless steel burners
- Electrical junction box
- Spill switch
- Rollout thermal fuse element
- Limited 10 year warranty
Steam Boilers Feature:
- 15 PSI ASME relief valve
- High-limit pressure control
- Low water cut-off electrode type
- 40VA transformer
- Steam pressure gauge
- Syphon
- Gauge cocks and glass
- Plug-in circulator relay
Specs
–
| Fuel Type: | Natural Gas |
|---|---|
| BTU Input: | 75000 |
| Efficiency: | 81% |
| BTU Output: | 47000 |
| Vent Size: | 5" |
| Gas Connection: | 1/2" |
| System Type: | Steam |
| Water Connection: | 1" |
| Weight (lbs): | 410 lbs |
| Width (Inches): | 17" |
| Vent Type: | Atmospheric |
| Height (Inches): | 33.75" |
| Features: | Standing Pilot |
| Depth (Inches): | 27-5/8" |
| Warranty: | 10 Year Limited (Cast Iron Sections), 1 Year (Parts) |
| Supply Tappings (NPT): | 3" |
| Return Tappings (NPT): | 2-1/2" |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Need help calculating?
Use Our Calculator
PEG30 SPDN Steam (S4)
Replacement Parts
SKU: 119-304-320
Brand: Weil-McLain
Search Parts:
SEARCH PARTS
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Base Front Access Panel w/ Flame Rollout Switch Bracket: EG, P-EG-30, 35, 451-800-040
451-800-040
Weil-McLainGasket for Cover Plate (Round) for Weil McLain 68 Boiler Section Assembly, 590-317-495
590-317-495
Weil-McLain(7)
Sealer for sections (cope seal – 4 ft. per joint)
591-641-865
Sorry, we don't currently sell this item. Request This Item
Need help finding a replacement part?
Fill out the part request form and someone will get back to you shortly.
PART REQUEST FORM
Product Q&A
1 Question1 Question
Q: how many sq ft home does this unit heat
Asked by 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis depends on the heat loss of the home. In New York a typical home requires approximately 35 BTUs per square foot, but this figure can be as low as 15 or as high as 60 if it's a very new or a very old home. Our BTU Calculator (see link below) can help you get an estimate. http://www.pexsupply.com/pex/control/BTUCalculator
