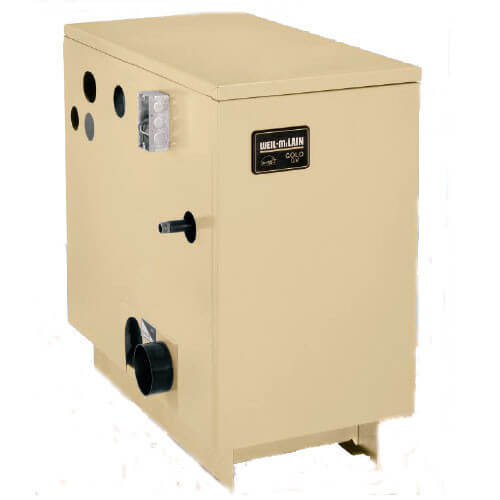

GV-6, 133,000 BTU Output High Efficiency Boiler (Nat Gas)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (3)
Replacement Parts
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Product Highlights
Description
Specs
| Fuel Type: | Propane Natural Gas |
|---|---|
| Boiler Type: | High Efficiency |
| Application: | Heating |
| BTU Input: | 175000 |
| BTU Output: | 133000 |
| Capacity (Gallons): | 6 |
| System Type: | Hydronic (Water) |
| Water Connection: | 1" |
| Gas Connection: | 1/2" |
| Vent Size: | 3" |
| Efficiency: | 87% |
| Features: | EI/Spark Ignition Direct Vent |
| Length (Inches): | 37-3/4" |
| Weight (lbs): | 410 lbs |
| Width (Inches): | 17-5/8" |
| Warranty: | Limited Lifetime on Cast Iron Sections/1 Year on Parts |
| Height (Inches): | 29.75" |
Questions?
GV-6 NG
Replacement Parts
SKU: 382-200-507
Brand: Weil-McLain
Need help finding a replacement part?
Product Q&A
2 QuestionsQ: Have a weil McClain CGM 6 from 1962. May need to replace it . Is this a match for the one I have?
Asked by Steve 15 years ago
Add your answer
Verified Reply- PexSupply StaffAccording to the manufacturer, CG boilers were first produced in 1967. The CG would have been around 80% efficient back then. GV boilers are 87% efficient. The net output of a CGM-6 was 104,300 BTUH. The GV-6 net output is 133,000 BTUHnet. The GV-5 net output is 105,000 BTUH, which is closer to the CGM-6.
Q: I own an old home and currenlty have a Weil Mclain HE series boiler. I want to mimick the same for another old home that I just purchased for the water filled radiators, hoter water maker and a radiant heat floor. I would assume that each of these would be considered separate zones. Will the GV-6 unit serve my purpose? If so how is that done?
Asked by Chris 16 years ago
Add your answer
Verified Reply- PexSupply StaffYes, the GV-6 would work, it is similar to the HE series but an updated model. Installation can get complicated so you should consult your installer on how to properly connect the boiler to the different zones.
