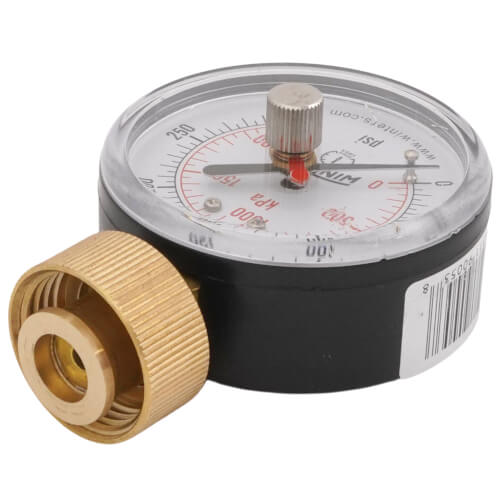

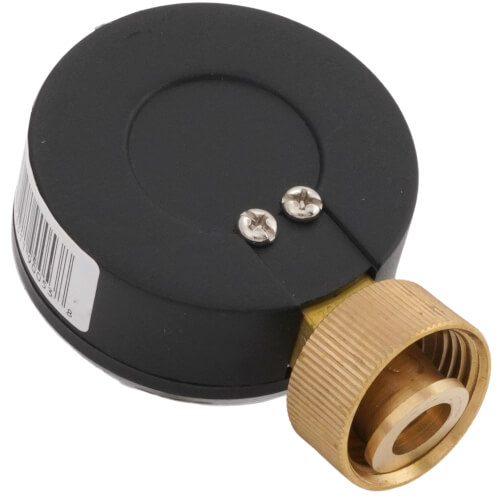

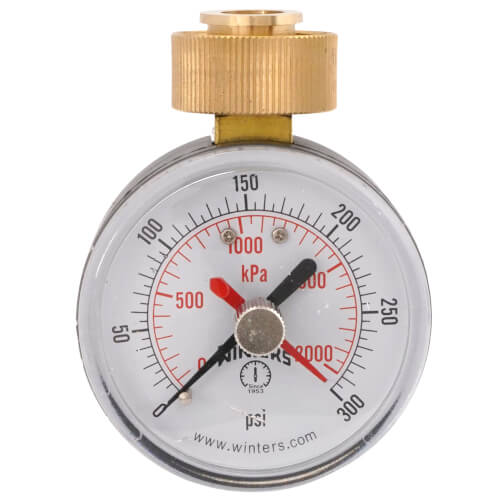

Economical pressure gauge and valve body assembly
used for pressure testing
Bleed port and plated housing on the gas test assembly
Black steel case
Dual scale (PSI/kPa)
±3-2-3% accuracy
CRN registered
5 year warranty
Applications:
Residential & commercial pressure testing of natural gas,
air and water lines
Specifications
Dial - white aluminum with black and red markings
Case - Steel painted black
Lens - Polycarbonate
Ring - Steel, painted black
Bourdon Tube - Phosphor bronze
Movement - Brass
Pointer - Aluminum, black
Welding #50 tin solder
Ambient/Process
Temperature - -40°F to 150 °F (-40°C to 65°C)
Gas Test - 40°F to 150 °F (-40°C to 65°C)
Working Pressure - Maximum 75% of full scale value
Accuracy - ±3-2-3% ANSI/ASME Grade B
Enclosure Rating - IP52
Note: Do not use this item for any installation or repair of potable water applications.
This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking).
This item is for non-potable (non-human consumption) water applications only.
