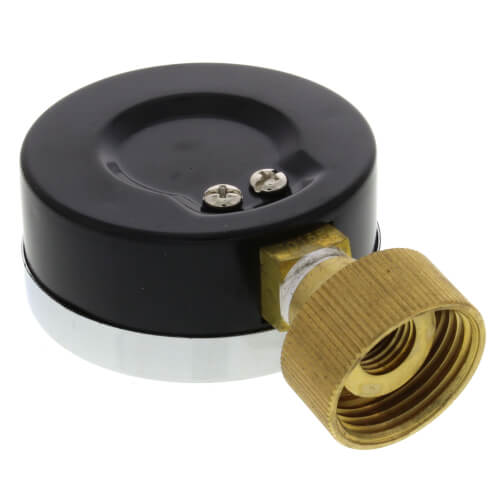

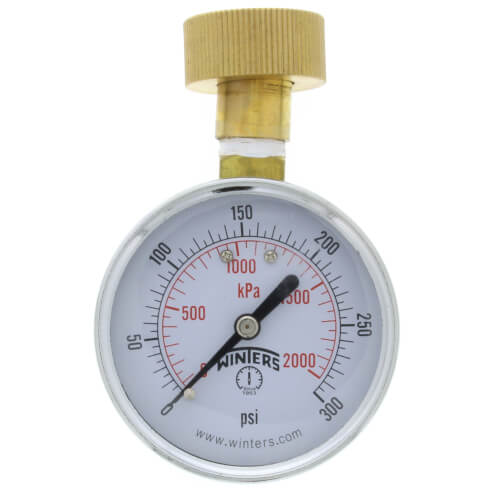

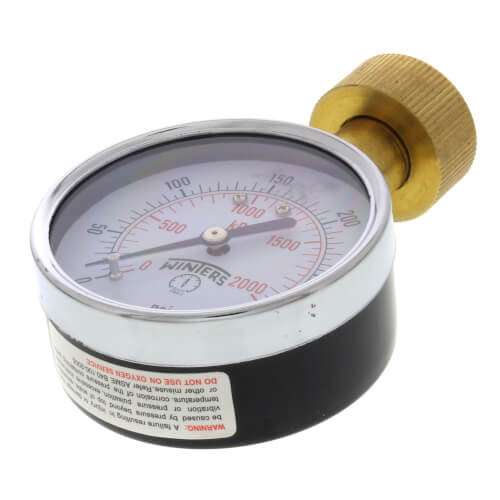

2-1/2" PET Economy Water Test Pressure Gauge (0-300 PSI)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$14.87 each
In Stock
Get 1 Wed, Jun 17
Order by today, receive Wednesday
MANUALS (3)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
3/4" Female Swivel Hose Connection
160 MAX PSI
Steel, Polycarbonate
Description
–
Description & Features:
Applications:
Specifications
- Economical pressure gauge and valve body assembly used for pressure testing
- Bleed port and plated housing on the gas test assembly
- Black steel case
- Dual scale (PSI/kPa)
- ±3-2-3% accuracy
- CRN registered
- 5 year warranty
Applications:
- Residential & commercial pressure testing of natural gas, air and water lines
Specifications
- Dial - white aluminum with black and red markings
- Case - Steel painted black
- Lens - Polycarbonate
- Ring - Steel, painted black
- Bourdon Tube - Phosphor bronze
- Movement - Brass
- Pointer - Aluminum, black
- Welding #50 tin solder
- Ambient/Process Temperature - -40°F to 150 °F (-40°C to 65°C)
- Gas Test - 40°F to 150 °F (-40°C to 65°C)
- Working Pressure - Maximum 75% of full scale value
- Accuracy - ±3-2-3% ANSI/ASME Grade B
- Enclosure Rating - IP52
Note: Do not use this item for any installation or repair of potable water applications.
This product does not comply with the "Safe Drinking Water Act," which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking).
This item is for non-potable (non-human consumption) water applications only.
Specs
–
| Product Type: | Pressure Gauge |
|---|---|
| Dial Size: | 2-1/2" |
| Connection Type: | 3/4" Female Swivel Hose |
| Measures: | Pressure |
| Application: | Water Pressure |
| PSI Range: | 0-160 |
| Max Pressure (PSI): | 160 |
| Type: | Dry |
| Material: | Steel Polycarbonate |
| Accuracy: | ± 3-2-3% |
| Ambient Operating Temperature: | -40°F to 150°F |
