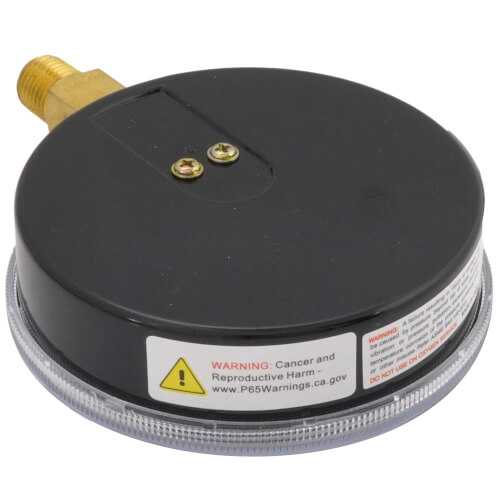

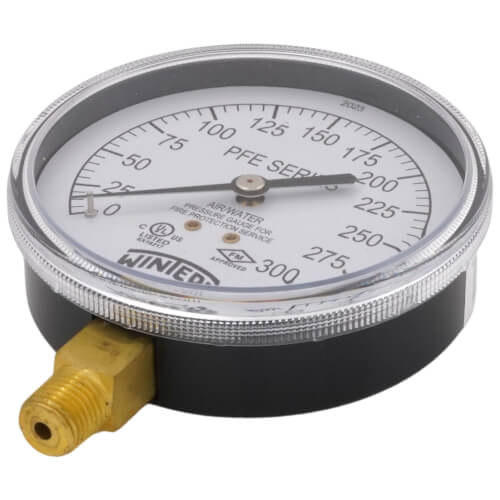

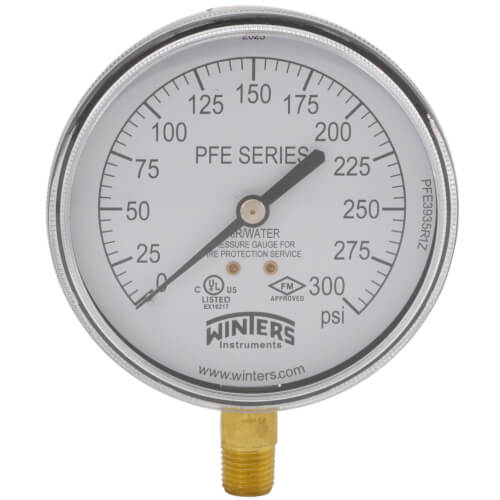

3-1/2" Black Plastic Case Sprinkler Gauge for Air/Water Media, 1/4" Bottom NPT (0-300 PSI)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$29.58 each
In Stock
Order by today, receive Tuesday
MANUALS (1)
Free Shipping On orders over $99
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/4" NPT Connection
300 MAX PSI
Bottom
Description
–
Winters Instruments PFE Series Sprinkler Gauge is ideally suited for fire sprinkler systems and firefighting equipment. 3.5 in. white aluminum dial with black and red markings. Black plastic case. Polycarbonate, threaded on lens. Brass socket and movement. Phosphor bronze bourdon tube. Black aluminum pointer. Silver alloy weld. Working pressure is a maximum 75% of full scale value. Ambient temperature is -40 to 150°F. IP52 enclosure rating. +/-3-2-3% ASME Grade B accuracy. 1/4 in. NPT bottom connection. Pressure range of 0-300 psi.
Features:
Features:
- Specially designed for fire sprinkler systems
- Suitable for air and water media
- Corrosion resistant case
- Dual scale (psi/kpa) and single scale (psi) pressure ratings
- Approved by Factory Mutual (FM) and listed by Underwriter Laboratory (UL-393), USA and Canada
- Internal pointer over-travel stop
- ASME B40.100 compliant
- CRN registered
- 5 year warranty
Specs
–
| Product Type: | Pressure Gauge |
|---|---|
| Dial Size: | 3-1/2" |
| Connection Type: | 1/4" NPT |
| Measures: | Pressure |
| PSI Range: | 0-300 |
| Application: | Pressure |
| Max Pressure (PSI): | 300 |
| Type: | Dry |
| Accuracy: | ± 1.5% |
| Movement: | Brass |
| Socket: | Brass |
| Bourdon Tube: | Phosphor Bronze |
| Mount: | Bottom |
