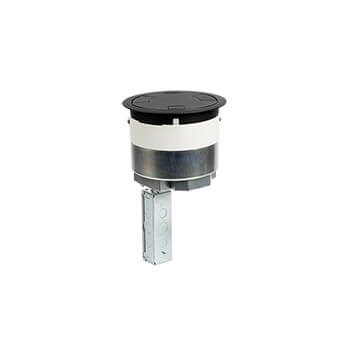

8" Evolution Surface Style Poke-Thru Device, Pre-Wired Assembly w/ Marking (Black)

Designed for retrofit and new construction, Evolution Series 8” Poke-Thru devices provide convenient access to power, communications, and A/V services recessed below floor level - providing maximum device protection. With five gangs of capacity that allow you to configure services for the needs of your space, services can be placed in any location within the unit. The low-profile durable metal covers are available in seven finishes, designed to match any space. The cover also features sliding doors that allow cables to neatly egress from the unit, protecting cables while reducing tripping hazards. Evolution Series 8” Poke-Thru devices are the perfect fit for meeting and training rooms, classrooms, healthcare facilities or commercial buildings with open-space architecture.

Features

Designed to be installed in a concrete floor which has access in the ceiling of the floor below for running power, data and A/V services

Poke-thru device installs into an 8" (203mm) to an 8 1/8" (206mm) diameter hole

The unit comes complete with a surface style cover, one (1) pre-wired, preinstalled duplex receptacle, one 20A proprietary duplex receptacle marked with a permanent “Controlled Receptacle” marking, and three (3) open compartments for additional power, data or AV devices

All five compartments are recessed 4" (102mm) below the floor surface level

The surface style cover is an aluminum cover that is designed to sit on top of finished floor surfaces, such as: carpet, tile, wood, polished concrete or terrazzo

Included
For Side Compartments:

• One (1) proprietary Tamper-Resistant 20A Duplex Receptacle
• One (1) proprietary Tamper-Resistant 20A Duplex Receptacle marked with a permanent “Controlled Receptacle”

For Center Compartment:

• No Device Plates are included

For Bottom Feed Compartment:

• One (1) 5BLH 1/2-Gang Blank Housing
• Three (3) 1PTHA 1-Gang Pass-Through Housing Assembly
• One (1) 575CHA 1/2-Gang 3/4" Conduit Housing Assembly
• One (1) 8DIV 8" Divider
