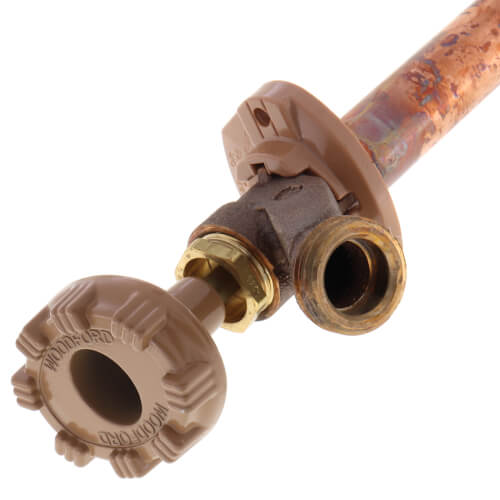

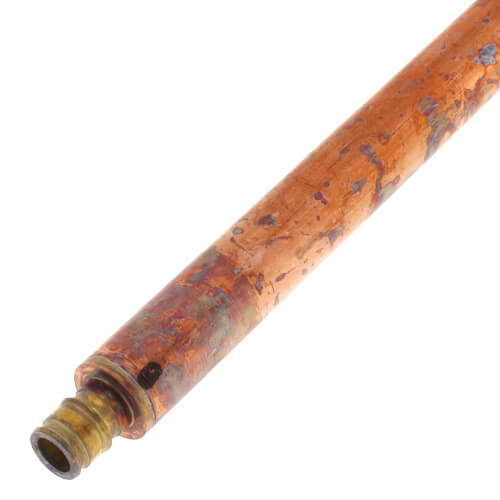

Model 16 24", 1/2" Expansion PEX Inlet Freezeless Wall Faucet

Overall Length of this product is 25-3/8". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details.

The Woodford Model 16 contains an internal resetting pressure relief valve which prevents the faucet casing tube from bursting in freeing conditions even if a hose is unintentionally left on.

This faucet is intended for irrigation purposes and designed for residential outside water service application and is not intended for continuous use applications.

Specifications:

• W Inlet: 1/2" Wirsbo Tube Fitting
• Manufactured under one or more of the following patents: 3,208,715; 3,278,201; 5,590,679; 5,632,303; 6,142,172; 6,532,986 and patents pending
• ASSE 1019 - Type C Listed
• CSA, cUPC Approved
• Not intended for continuous use

Features:

• Patented resetting pressure relief valve prevents the faucet tube from bursting in freezing conditions even if a hose is unintentionally left on.
• 3/4" male hose thread nozzle
• Stainless steel seat - eliminates wire draw
• EPDM packing to prevent leaking
• Full circle operating threads on valve body and retainer
• No-lead solder
• Standard “O” size seat washer
• Oval, powder-coated, die cast aluminum handle
• Optional Tee Key available (extra charge)
• Adjustable polycarbonate wall flange
• MAX PRESSURE - 125 p.s.i.
• MAX TEMPERATURE - 120° F
