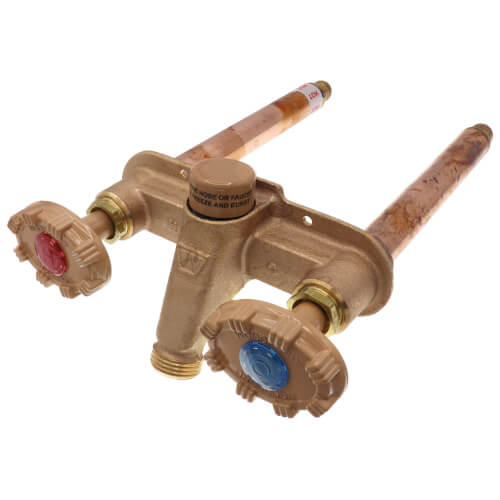

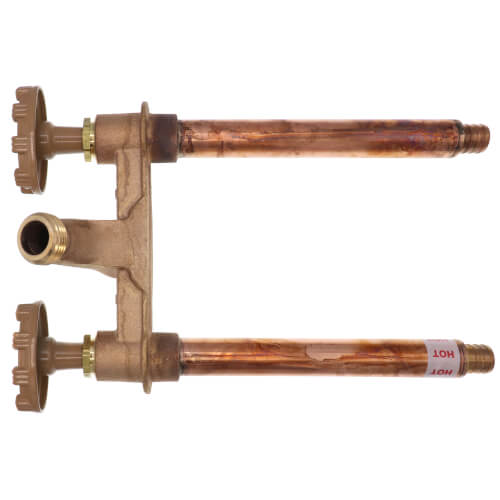

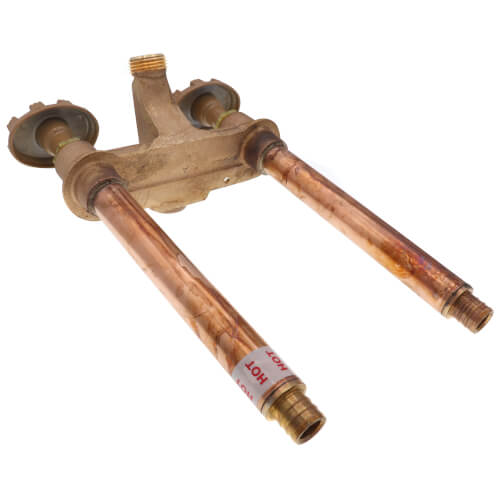

6" 22PX3 Horizontal Hot & Cold Anti-Siphon Wall Faucet w/ Metal Handle, 3/4" PEX Inlet

Overall Length of this product is 7-3/4". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details.

The Woodford Model 22 (horizontal) hot and cold outdoor wall faucet is intended for irrigation purposes and designed for year-round residential regardless of outside temperature. Will not rupture from freezing, even if the hose is connected (hose sold separately). Includes a patented Pressure Relief Valve (PRV) that will prevent the faucet tube from bursting. Separate hot and cold inlet tubes allow for manually operated temperature control with cross contamination protection. Anti-siphon protection. Oval, powder-coated, die-cast aluminum handle. Woodford, The Choice of Professionals.

• PEX inlet - 3/4 in. PEX
• Freeze less wall faucet
• 3/4" male hose thread nozzle
• Unit offers anti-siphon and backflow protection
• Patented resetting pressure relief valve (PRV) prevents the faucet tube from bursting in freezing conditions in both the cold and hot tubes, even if a hose is unintentionally left connected
• EPDM rubber packing helps prevent leaking behind the packing nut
• Stainless steel seat to prevent from leaking at the back of the faucet
• Full-circle operating threads cover the valve body and retainer for a secure and tight fit
• Powder-coated die-cast aluminum oval handle for strength
• Brass construction
• No-lead solder
• Install with a slight downward pitch, unit has a slight angle already built-in on the brass casting
