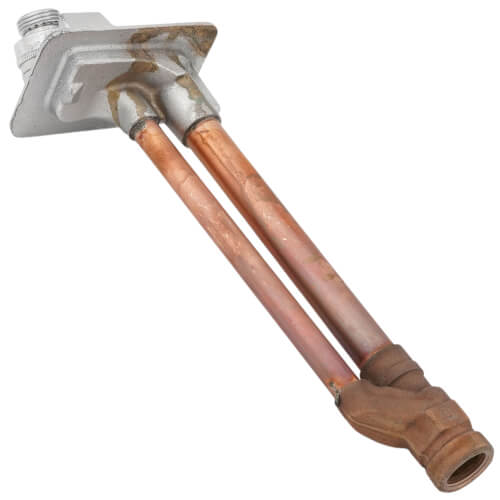

Model 65 8", 3/4" FPT Inlet Freezeless Automatic Draining Wall Hydrant

Overall Length of this product is 12". Overall Length is determined by wall thickness plus the inlet length. Please check Submittal Sheet file for details.

The Model 65, B65 & RB65 are automatic draining, freezeless wall hydrants with hose connection anti-siphon vacuum breakers. Hydrants drain as handle is shut off, even if hose is attached. All models are intended for irrigation purposes and blend in with modern architecture for installation on restaurants, schools, office buildings, churches, apartments, motels, stores, shopping centers and industrial buildings.

Specifications:

• ASSE Standard 1019-B approved
• IAPMO listed
• Meets Government Specification WW-P-541b

Vacuum Breaker - Anti-Siphone:

• NIDEL Model 34HA with 3/4 inch male hose thread
• ASSE Standard 1011 approved
• IAPMO listed

Features:

• Permanent type brass valve body with hemispherical seating surface.
• One piece valve plunger accurately controls both flow and drainage with a minimum number of turns and without need for adjustments.
• Drains under nozzle away from hands of operator and with a lip to divert water away from building.
• Copper casing tubes.
• No Lead Solder on all solder joints.
• Hardened stainless steel stem resists damage.
• Loose key operates hydrant.
• 3/8" solid brass operating rod.
• Four inlet options (See below)
• Wall clamp furnished on all 60 series except close coupled.
• Max Pressure: 125 p.s.i.
• Max Temperature: 120° F
