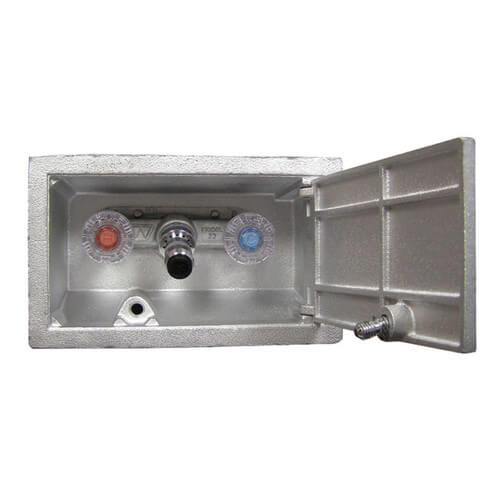

Model B22 22", 1/2" x 3/4" Sweat Inlet Hot & Cold Box Anti-Siphon Faucet w/ Metal Handle (Chrome)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$833.79 each
Backorder
Get it Wed, Jul 15 - Wed, Aug 12
MANUALS (1)
Non-Potable Water Applications
–
This product does not comply with the “Safe Drinking Water Act,” which requires that products meet low-lead standards in order to be used in systems providing water for human consumption (drinking or cooking). This item is for non-potable (non-human consumption) water applications only.
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1/2" x 3/4"
23-5/8" Length
Sweat
No
120°F Max Temp
22"
Description
–
Note: This unit offers backflow and bursting protection.
Overall Length of this product is 23-5/8". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details.
The Woodford Model C22 chrome plated commercial wall faucet is designed for irrigation purposes to provide year-round hot and cold water service regardless of outside temperature. Separate hot and cold inlet tubes and operating handles allow for manually operated water temperature control. Use on any commercial structure where intermittent hot and cold water service is required.
Specifications:
Overall Length of this product is 23-5/8". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details.
The Woodford Model C22 chrome plated commercial wall faucet is designed for irrigation purposes to provide year-round hot and cold water service regardless of outside temperature. Separate hot and cold inlet tubes and operating handles allow for manually operated water temperature control. Use on any commercial structure where intermittent hot and cold water service is required.
Specifications:
- ASSE 1052 Approved
- Listed by IAPMO
- Field Testable
- Two Independent Check Valves
- Drains automatically when hose is removed
- No spray back
- An internal resetting pressure relief valve prevents the faucet casing tube from bursting in freezing conditions even if a hose is unintentionally left on.
- 5" center to center handle spacing.
- Faucet drains automatically when hose is removed.
- Permanent stainless steel seat will not wire draw.
- EPDM packing to prevent leaking.
- Loose Tee Key - optional
- Nozzle - 3/4" male hose thread
- Valve Operating Threads - Full circle threads on valve body and retainer
- No Lead Solder - All solder joints
- Seat Washer - Standard “O” size
- Max. Pressure - 125 p.s.i.
- Max. Water Temperature - 120° F
Specs
–
| Max Temp (F): | 120°F |
|---|---|
| Product Type: | Wall Hydrant |
| Wall Thickness: | 22" |
| Size: | 1/2" x 3/4" |
| Inlet Type: | Sweat |
| Length (Inches): | 23-5/8" |
| Max Pressure (PSI): | 125 |
| Finish: | Chrome Plated |
| Outlet Size: | 3/4" |
| Lead Free: | No |
| Outlet Type: | Garden Hose Thread |
| Anti-Siphon: | Yes |
| Application: | Commercial |
