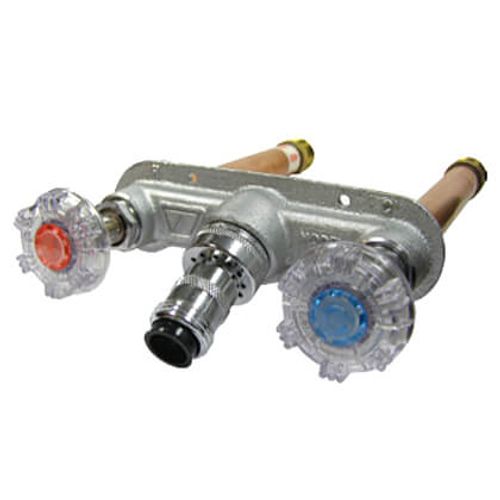

Model C22 8", 1/2" MPT x Sweat Hot & Cold Anti-Siphon Wall Faucet (Chrome)

Note: This unit offers backflow and bursting protection.

Overall Length of this product is 9-3/4". Overall Length is determined by wall thickness plus the inlet length. Please check Product Overview file for details.

The Woodford Model C22 chrome plated commercial wall faucet is designed for irrigation purposes to provide year-round hot and cold water service regardless of outside temperature. Separate hot and cold inlet tubes and operating handles allow for manually operated water temperature control. Use on any commercial structure where intermittent hot and cold water service is required.

Specifications:

• MODEL 50HA BACKFLOW PREVENTER - Patent Pending
• ASSE 1052 Approved
• Listed by IAPMO
• Field Testable
• Two Independent Check Valves
• Drains automatically when hose is removed
• No spray back
• Nozzle - 3/4” male hose thread
• Valve Operating Threads - Full circle threads on valve body and retainer
• No Lead Solder - All solder joints
• Seat Washer - Standard “O” size
• Max. Pressure - 125 p.s.i.
• Max. Water Temperature - 120° F

Features:

• An internal resetting pressure relief valve prevents the faucet casing tube from bursting in freezing conditions even if a hose is unintentionally left on.
• 5” center to center handle spacing.
• Faucet drains automatically when hose is removed.
• Permanent stainless steel seat will not wire draw.
• EPDM packing to prevent leaking.
