Model HCB67 12", 3/4" FPT Inlet Freezeless Backflow Preventer Hot & Cold Mixer Box Wall Hydrant (Chrome)

Overall Length of this product is 18". Overall Length is determined by wall thickness plus the inlet length. Please check Submittal Sheet file for details.

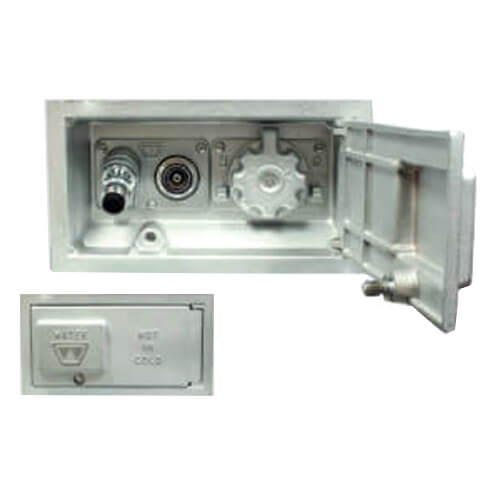

The Model HC67 & HCB67 are freezeless hot and cold mixer wall hydrants with automatic draining and hose connection Backflow Prevention. Hydrant drains when shut off, even if hose is attached. The Model HCB67 is enclosed in a flush mounted wall box. Both models are designed for commercial irrigation purposes where outside Hot & Cold water service is required.

Specifications:

• NIDEL Model 50HA with 3/4" male hose thread
• ASSE Standard 1052 approved
• Field Testable
• Two Independent Check Valves
• Drains automatically when hose is removed
• No spray back

Features:

• Permanent type brass valve body with hemispherical seating surface.
• One piece valve plunger accurately controls both flow and drainage with a minimum number of turns and without need for adjustments.
• Drains under nozzle away from hands of operator and with a lip to divert water away from building.
• Copper casing tubes.
• No Lead Solder on all solder joints.
• Hardened stainless steel stem resists damage.
• Loose key operates hydrant.
• 3/8” solid brass operating rod.
• 3/4” FPT Hot & Cold Inlets
• Check valves are located in each inlet to prevent migration
• Wall clamp furnished on all 60 series except close coupled.
• Max Pressure: 125 p.s.i.
• Max Temperature: 120° F
