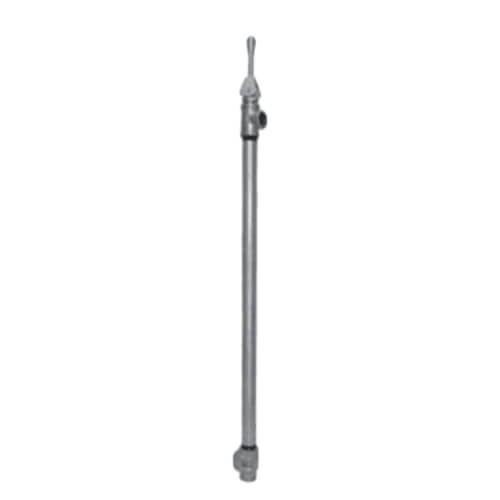

Model-U125, 1-1/4" NPT Inlet Freezeless Utility Yard Hydrant (3 Ft. Burial Depth)

Woodford Utility Yard Hydrants are intended for irrigation purposes and designed for use where year-round availability of water is required. Sturdy construction make these hydrants rugged and dependable. Accidental damage and vandalism are minimized. Hydrants are available with choice of automatic or manual close lever handle or wheel handle.

Product Specifications

• Model U125: 1-1/4" Brass Valve Body, MPT
• Outlet: 1-1/4" FPT Galvanized Tee
• Manual closing lever handle should be installed where water is continuously used over a period of time.
• Operating Rod: 1/4" galvanized pipe
• Casing: 1-1/4" galvanized pipe
• Max. Pressure: 125 PSI

Product Features

• Automatic draining occurs through 1/8" NPT drain hole when hydrant is shut off to prevent freezing.
• Outlet can be located at any height above ground level. Adjust bury depth accordingly.
• All working parts are removable through the top of the hydrant.
• Lever handles can be easily removed to prevent unauthorized usage.
