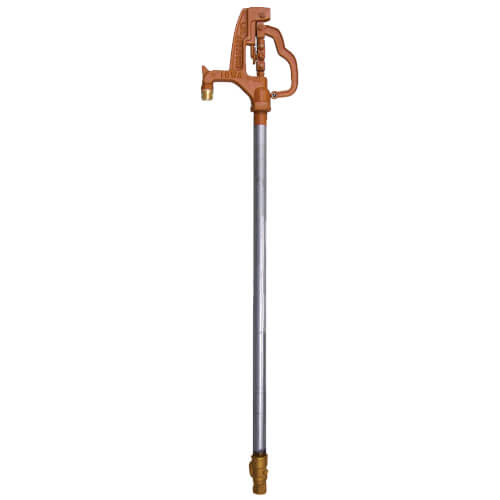

Model-Y34, 3/4" FPT Brass Non-Freeze Iowa Yard Hydrant w/ Automatic Draining (3 Ft. Burial Depth)

Model-Y34, 3/4" FPT Brass Non-Freeze Iowa Yard Hydrant w/ Automatic Draining (3 Ft. Burial Depth)

Iowa hydrants are intended for irrigation purposes and used for fi lling fi eld spray equipment, cleaning tools and equipment, lawn and garden care, watering livestock - immediate water fl ow even in sub zero temperatures.

Specifications:

• Female Inlet: Model Y34 - 3/4" NPT
• Casing: Model Y34 - 1" Galvanized Steel Pipe
• Operating Rod: 3/8" Galvanized Steel Pipe
• Drain Hole: Tapped - 1/8" N.P.T.
• Removable Nozzle: 3/4" Brass Male Hose Nozzle

Features:

• Adjustable Link - Provides easy and positive adjustment of the lever lock tension.
• Rod Guide - Eliminates side pull on rod, reduces wear on packing, packing nut & stem.
• Flow Finder and Lock - A simple cam that can be set to automatically obtain the same fl ow each time or lock against accidental opening.
• Long Life Packing - Graphite packing for lubricity and long life.
• One Piece Variable Flow Plunger - Large cushion type seal for longer life - is not easily damaged and assures shut-off even when foreign particles are present. Automatic drain feature - plunger opens drain to prevent freezing - closes at any fl ow to prevent wasting water.
• Maintenance & Repair - Woodford has manufactured the IOWA hydrant since 1929, and although many improvements have been made through the years, all parts are interchangeable. All repairs can be made from top of unit without removing hydrant from the ground.
• Maximum Working Pressure: 125 p.s.i.
• Maximum Temperature: 120° F
