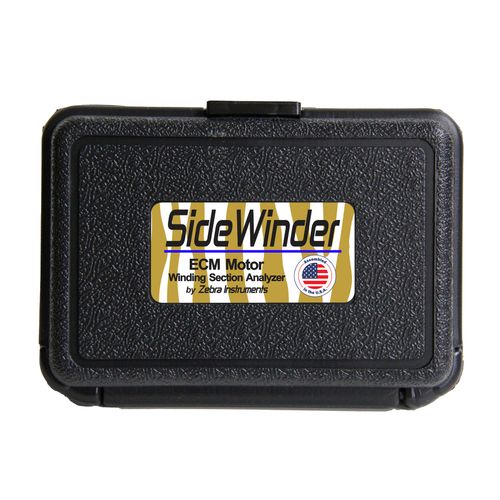

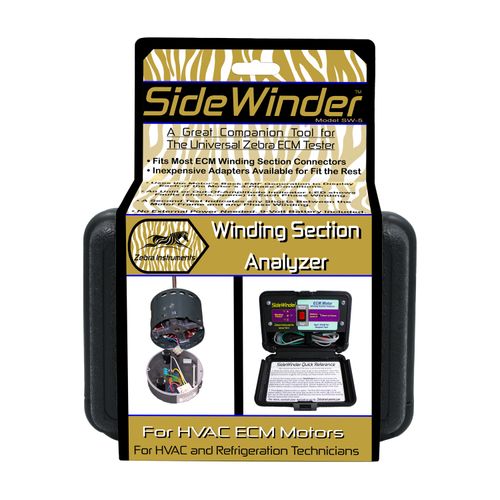

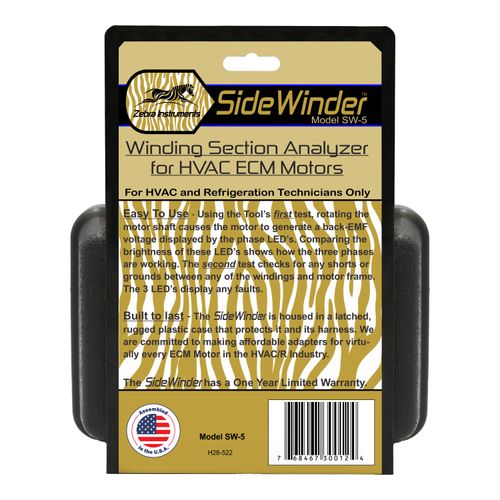

SideWinder - ECM Winding Analyzer
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$119.79 each
In Stock
Order by today, receive Tuesday
MANUALS (2)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
1 Year Warranty
Description
–
SideWinder
Diagnosing which section of an ECM motor that has a problem has never been easier.
The SideWinder is easy to use! Using the tool's first test, by rotating the motor shaft, causes the motor to generate a back-EMF voltage, which is displayed by the phase LEDs. Comparing the brightness of these LEDs shows how the three phases are working. The second test checks for any shorts or grounds between any of the windings and motor frame. The 3 LEDs display any faults.
Built to last! The SideWinder is housed in a rugged plastic case with secure latch that protects it from damage. Affordable adapters for most ECM motor in the HVAC/R industry are avaliable.
The Perfect companion for the UZ-1!
Features
Diagnosing which section of an ECM motor that has a problem has never been easier.
The SideWinder is easy to use! Using the tool's first test, by rotating the motor shaft, causes the motor to generate a back-EMF voltage, which is displayed by the phase LEDs. Comparing the brightness of these LEDs shows how the three phases are working. The second test checks for any shorts or grounds between any of the windings and motor frame. The 3 LEDs display any faults.
Built to last! The SideWinder is housed in a rugged plastic case with secure latch that protects it from damage. Affordable adapters for most ECM motor in the HVAC/R industry are avaliable.
The Perfect companion for the UZ-1!
Features
- Fits most ECM winding section connectors.
- Inexpensive adapters available for fit the rest.
- Uses the motors back-EMF generation to display each of the motors 3-phase conditions.
- An unlit or out-of-amplitude indicator LED shows faults (shorts, opens) in each phase winding.
- A second test indicates any shorts between the motor frame and any phase winding.
- No external power needed. 9-Volt battery included.
- Comes with a one year limited warranty.
Specs
–
| Product Type: | SideWinder |
|---|---|
| Battery Type: | 9V |
| Batteries Included: | 1 |
| Warranty: | 1 Year |
