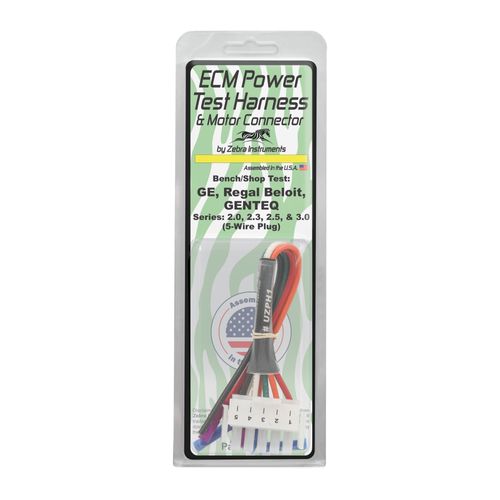

Motor Plug & Harness #1 for Universal Zebra System

This plug and harness fits the common GE/Regal-Beloit/GENTEQ Series 2.0, 2.3, 2.5 and 3.0 motors. It has a 5-pin motor plug (1 row of 5 pins). The motors can be either 120V or 240V, the plug/harness allows you to test any voltage motor with EITHER 120V or 240V on your bench.

Motor Power Plug & Harness #1 is used with the UZ-1 Universal Zebra System to enable you to troubleshoot:
  • GE, Regal-Beloit, and GENTEQ Series 2.0 ECM Motors
  • GE, Regal-Beloit, and GENTEQ Series 2.3 ECM Motors
  • GE, Regal-Beloit, and GENTEQ Series 2.5 ECM Motors
  • GE, Regal-Beloit, and GENTEQ Series 3.0 ECM Motors
The Adapter simply plugs in to the end of the Universal Zebra's harness, and then to the motor. A magnetic overlay card is included that explains what functions the UZ-1's switches and LEDs perform for this specific series of ECM motor.

  • Crystal-Clear Clamshell package with hanging hole

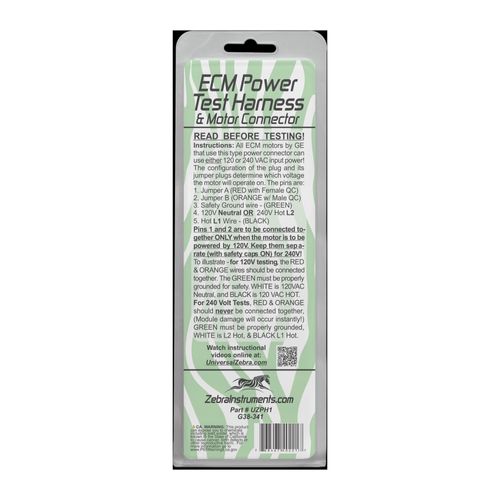

  • Full-Color insert with instructions
  • Package Weight: 2 oz. each
  • Standard Carton: 12 Pieces
Hide Description
Product Type:

Plug & Harness

Used With:

Universal Zebra System
