$193.99 each
In Stock
Get 234 Tue, Jul 7
Order by today, receive Tuesday
MANUALS (2)
This item replaces: 38-ZW3870T
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Compression x Compression Connection
3/8"
115°F Max Temp
95°F Min Temp
145 MAX PSI
Yes

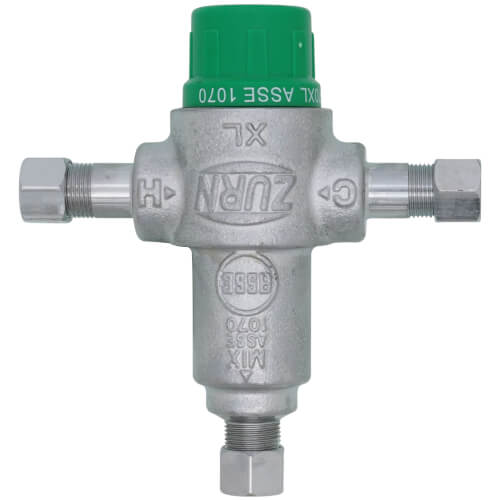

Description
–
Features:
- Size: 3/8"
- Thermostatic Mixing Valve
- Compression
- ASSE1016
- ASSE1070
- 3 Port
- No Lead
- Outlet Temperature Range: 95-115F
- Temperature Cold Supply: 40-75F
- Max Working Pressure (Inlet): 145 PSI
- Minimum Flow Rate: .5gpm
- Body: Bronze JIS H5120 CAC902 with Chrome Plating
- Internal Brass: Brass, ASTM B 371
- Piston: Polysufone
- Spring and Screen: 300 Series Stainless Steel
- Seals: Viton
- Checks: Acetal Co-Polymer
- CA/VT Complaint
Specs
–
| Min Temp (F): | 95°F |
|---|---|
| Max Temp (F): | 115°F |
| Ports: | 3 |
| Size: | 3/8" |
| Max Pressure (PSI): | 145 |
| Connection Method: | Compression |
| Connection Type: | Compression x Compression |
| Lead Free: | Yes |
| Standards Met: | ASSE 1070 |
| Application: | Point of Use |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
You May Also Need
Product Q&A
1 Question1 Question
Q: How do you adjust temperature?
Asked by Bennie 9 years ago
Add your answer
Verified Reply- To set the temperature on the valve remove the protective blue cap. The cap can be removed by inserting a small blade screwdriver into the slot at the base of the blue cap and lightly push up. Using an adjustable wrench or combination wrench, rotate the flats clockwise to lower the temperature or counter-clockwise to increase the set temperature. Read temperature with a thermometer.
