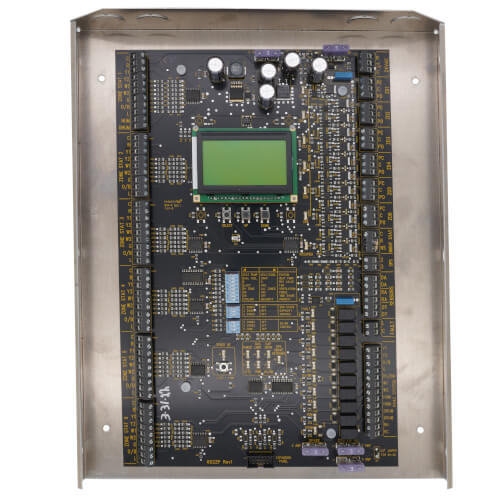

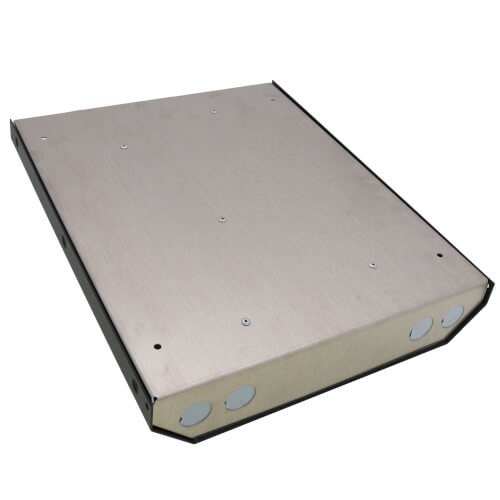

6 Zone Universal Zone Control Panel Kit w/ (2) Duct Temp Sensors, Static Pressure Sensor, 75VA Transformer

The ZP6 with ESP is a 6 zone, two-position forced air zone control panel that can be expanded to as many as 12 zones. The panel can be used with single-stage, multi-stage, heat pump or dual fuel equipment with up to 4 stages of heating and 2 stages of cooling. Slide switch configuration makes setup quick and easy. This zone control system comes with built in ESP static pressure control which eliminates the need for a bypass damper when used with the standard 3-wire MD damper series. A wide range of control options provides ultimate application flexibility.

Kit Includes:

• Panel
• Static Pressure Sensor
• (2) Duct Temperature Sensors
• 75VA Transformer

Features:

• 6 zones expandable up to 12 (using ESP expansion panel)
• Auto changeover
• Cooling priority or majority wins
• Twenty minute time share option
• Optional night thermostat
• Humidification/Dehumidification pass-throughs
• Staging by zone thermostat or built in upstage timer
• 2nd stage capacity control option
• Purge cycle option
• Works with 2 or 3 wire zone dampers
• Adjustable high and low limit
• Adjustable high and low balance point
