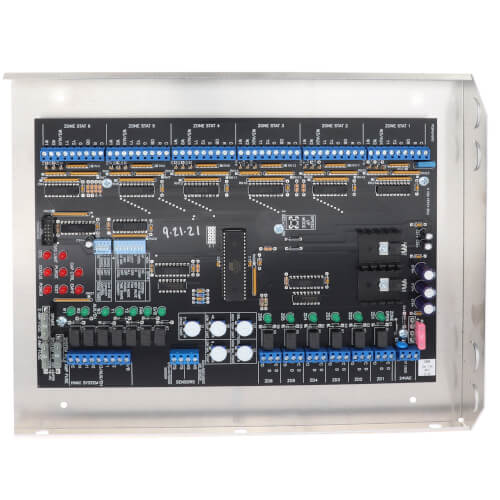

6 Zone Universal Zone Control Panel Kit w/ Duct Temp Sensor, 75VA Transformer

The ZP6 is a 6 zone, two-position forced air zone control panel that can be expanded to as many as 12 zones. The panel can be used with single-stage, multi-stage, heat pump or dual fuel equipment with up to 3 stages of heating and 2 stages of cooling. Slide switch configuration makes setup quick and easy. A wide range of control options provides ultimate application flexibility.

Features:

• 6 zones expandable to 12
• Auto changeover
• Priority cooling or majority wins
• Twenty minute time share option
• LED status indication
• On-board adjustable high and low limits and balance points
• Staging by zone thermostat or adjustable staging timer
• Purge cycle option
• Competitively priced
• 10-year warranty

Kit includes: Panel, duct temperature sensor and 75VA transformer
