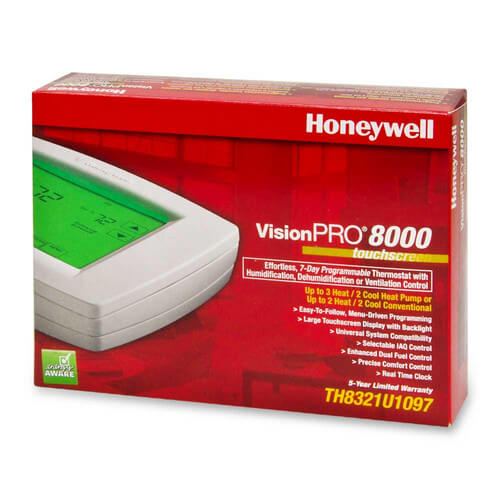

VisionPRO Programmable, 2H/2C, Touchscreen Thermostat w/ Selectable IAQ Control
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (6)
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Product Highlights
Description
Features
- Large, Clear Display with Backlighting current temperature, set temperature and time are easy-to-read and all are displayed on the home screen.
- Menu Driven Programming Guides you through the scheduling process, showing only necessary information and choices on each screen.
- Ability to Select Multiple Days allows you to easily customize the thermostat for your unique schedule.
- Real-Time Clock keeps time during power failure; automatically updates for daylight saving time.
- Armchair Programming allows you to remove thermostat from wall to set the schedule.
- Precise Temperature Control (+/-1 F) reliable, consistent comfort.
- Multiple HOLD options allow you to modify schedule indefinitely or for a specific time.
- Change Reminders reminds you to service or replace the air filter, humidifier pad, ultraviolet lamp or thermostat batteries.
- Adaptive Intelligent Recovery - ensures programmed temperature is reached by programmed time.
- Temperature range stops - prevents user from setting the temperature too high or too low.
- Keypad lockout options for partial or full lockout.
- Desert humidification
- Enhanced geothermal heat pump control with fossil fuel back-up
- Expanded ventilation lockouts
- Advanced Dual Fuel control
- Selectable IAQ Control- Includes a set of Universal IAQ contacts to control humidification, dehumidification or ventilation - the choice is yours
Specs
| Amperage: | 1 |
|---|---|
| Application: | Multi-Stage (Heat/Cool) Heat Pump |
| Stages: | 2 Heat/2 Cool 3 Heat/2 Cool Heat Pump |
| Programmability: | 7 Day Programmable |
| User Interface: | Touchscreen |
| Mount: | Horizontal |
| Options: | Password Lockout Works with Sensor Fan Control Auto Changeover Large Display |
| Power Method: | Hardwired Battery |
| Changeover: | Manual Auto |
| Temperature Range (F): | 40°F - 99°F |
| Voltage: | Low voltage |
| Color: | Premier White |
| Height: | 4-9/16" |
| Width (Inches): | 6" |
| Depth (Inches): | 1-1/4" |
| Humidity Control: | Yes |
| Wireless: | No |
Questions?
Compare Similar Products
Heat Pump
3 Heat/2 Cool Heat Pump
Programmable
Product Reviews
Thermostat shows all and easy to read without your glasses
Excellent Thermostat & Humidistat in One
Product Q&A
6 QuestionsQ: Can this thermostat be used with a single stage heat and A/C unit?
Asked by NEOK 13 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it can.
Yes.
Yes I am using it with a single stage Lennox furnace and a dual stage 3 ton Lennox air conditioner. Hopes this helps.
Q: Can I lock the screen with a password so that nobody can change the temperature without knowing the password?
Asked by Jess 13 years ago
Add your answer
Verified Reply- PexSupply StaffThis thermostat does have a screen lock function, however it does not have password protection, unfortunately. Information on the screen lock can be found on page 29 of the user guide found here on our site : http://s3.pexsupply.com/manuals/1271961932045/29356_PROD_FILE.pdf
You do not set a password. You lock/unlock the screen via a hidden key combination to get to the settings menu, then understanding what setting number is the lock settings. Its all described in the manual.
Q: Does this work with heat pump only ???
Asked by zeeman 14 years ago
Add your answer
Verified Reply- PexSupply StaffYes, it does.
It should work with a heat pump or conventional heat. It may be a problem if used with a heat pump and furnace together if the furnace and or heat pump is dual stage because it only has 2 heat stages.
Q: How do you change the light bulb
Asked by rogloft 14 years ago
Add your answer
Verified Reply- PexSupply StaffThis thermostat does not have a light bulb. In reference to the display, if thermostat is battery powered, make sure fresh AAA alkaline batteries are correctly installed (see page 22 of the operating manual). If thermostat is AC powered, a dim display is normal. The backlight remains on at a low level, and brightens when a key is pressed.
Q: can it be used for geothermal (water furnace)\ and does it click when goes on and off?
Asked by Gary 15 years ago
Add your answer
Verified Reply- HoneywellThis thermostat is compatible with geothermal units and will also click on and off on calls for heating, cooling and fan operation. All Honeywell thermostats have this small click as the contacts on the terminals are closing.
Q: Can the selectable IAQ terminals/contacts be used to control a powered humidifier? Thank you.
Asked by Chuck 16 years ago
Add your answer
Verified Reply- PexSupply StaffYes, they can. Once the wires are connected to the designated terminals, the humidifier can then be controlled by the thermostat.
