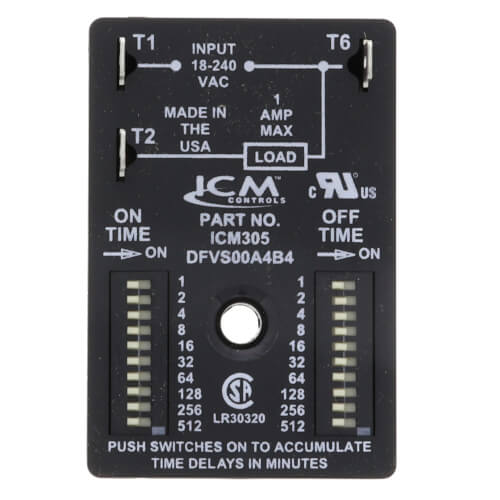

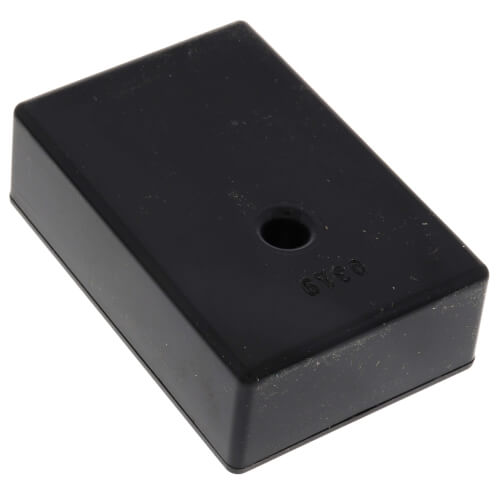

ICM305 Duty Cycle Timer, Time Delay in Minutes
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
ICM305 has been discontinued
Discontinued June 9, 2021
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
18/240 VAC
1 Amps
3" Length
1.3"
Description
–
Features
- Reliable duty cycle timer ideally suited for defrost applications
- Suitable for process equipment or applications requiring intermittent delays
- Switch-settable time delays
- Time delay in 1-1,023 minutes in 1-minute intervals (ON/OFF)
- Digital timing accuracy
- Reliable solid state output
- Epoxy-encapsulated for greater reliability
- Universal voltage
- On time starts at power up
Specs
–
| Product Type: | Duty Cycle |
|---|---|
| Time Delay: | 1-1023 Min in 1 Min Intervals |
| Voltage: | 18/240 VAC |
| Frequency: | 50-60 Hz |
| Power Consumption: | 1 watt maximum |
| Amperage: | 1 |
| Amp Inrush: | 10 |
| Voltage Drop: | 2.5v @1amp |
| Length (Inches): | 3" |
| Width: | 2" |
| Height: | 1.3" |
| Replaces: | HN67ZA012A TSDR Series ESDR |
| OEM: | SSAC Carrier |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
4.64 out of 11 reviews
91% would recommend this product
5 star
91%
4 star
0%
3 star
0%
2 star
0%
1 star
9%
Most Liked Positive Review
Great Well Pump Cycle Timer!
This is a great, inexpensive solid state cycle timer. I use mine for cycling my submersible pump on and off on my low yield water well so I don't run it dry. Wells hold up better over time if you don't continuously run them dry.
I use the timer to drive a contactor to switch the pump on and off. When my tank level float switch signals demand to run the pump, the cycle timer energizes the pump contactor as needed to fill the tank (depending on your application, a pressure switch could provide the demand to start the cycle timer to energize the contactor to fill a pressure tank too...).
VS
Most Liked Negative Review
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Didn't work. Very disappointed
Product did not work, therefore I cannot recommend.
Showing 1-10 of 11 reviews
WHAT A PROBLEM SOLVER
My refrigerator runs all the time. I bought this timer to externally manage the ON/Off cycles.
I switch the compressor through an auxiliary relay. I was pleased that a resistor was not needed to put a load on the timer. The relay alone works well with the timer.
I'll be getting a 2nd one to cycle an ozone generator ON/Off.
Ken
Grand Rapids, MI
9 years ago
Verified Buyer
Was this review helpful to you?
Great Timer
Pump control to prevent over pumping low production well.
Ross
Cullowhee, NC
11 years ago
Verified Buyer
Was this review helpful to you?
CYCLE TIMER
Used this to cycle the furnace blower on and off.
Vast selection of on and off times.
Dale
Northern Il
11 years ago
Verified Buyer
Was this review helpful to you?
works like it should
So far this thing is working great for what I needed it to do. Only been using it for two weeks though.
jhenry
kansas
11 years ago
Verified Buyer
Was this review helpful to you?
Perfect solution
Timer was used to cycle on residential hot water recirc. pump 2 min every hour. effective, inexpensive way to have constant hot water available to remote bathroom.
Mike
Tucson,AZ
12 years ago
Verified Buyer
Was this review helpful to you?
Simple set-up, works as described
Easy installation and timer set-up. Used to enforce duty cycle on a water inlet valve. Good build quality, on-off times meet the stated accuracy. Hope it lasts a long time.
JMF
Michigan
12 years ago
Verified Buyer
Was this review helpful to you?
ICM305
I have a simple single zone heat system with a very tight (low loss) house and wanted a temporary on circuit to keep the floor "buffered" I used this timer with a small relay to cycle my heat system along with a line voltage thermostat to keep it from cycling when the house is at a certain high setpoint.
wif350
Northern Wi.
13 years ago
Verified Buyer
Was this review helpful to you?
Great Well Pump Cycle Timer!
This is a great, inexpensive solid state cycle timer. I use mine for cycling my submersible pump on and off on my low yield water well so I don't run it dry. Wells hold up better over time if you don't continuously run them dry.
I use the timer to drive a contactor to switch the pump on and off. When my tank level float switch signals demand to run the pump, the cycle timer energizes the pump contactor as needed to fill the tank (depending on your application, a pressure switch could provide the demand to start the cycle timer to energize the contactor to fill a pressure tank too...).
Bruce
Medford, OR
13 years ago
Verified Buyer
Was this review helpful to you?
Good timer
I use this timer to control the fan on my forced air furnace / air conditioner. Having the fan run periodically helps even out the hot and cold spots in my house. The timer works with a wide range of control voltages (24v for my furnace) and the switches for on and off time let me set the fan timer to whatever interval I want. The male quick connect fittings on the timer made installation simple.
Tim
Poughkeepsie, NY
13 years ago
Verified Buyer
Was this review helpful to you?
Good timer 2 cycling anything, add relay
This is a great lower price cycle timer that you can set the time in minutes for both on and off time; each switch adds it's number to all others that are on. However it is a control device which is not able to power a real load like a motor . However if you add a relay with a coil voltage of whatever you power the timer with, then any load can be powered.
Allens HVAC
texas
13 years ago
Verified Buyer
Was this review helpful to you?
Product Q&A
1 Question1 Question
Q: Will this unit con trol a small 120 volt load? In other words, if a 120 volt line is the input, will the output control on or off a 120 volt load without needing to use a relay between the timer and the load? Thanks much, Dan
Asked by mud 12 years ago
Add your answer
Verified Reply- Supplyhouse Staffyes this unit will work with 120VAC
