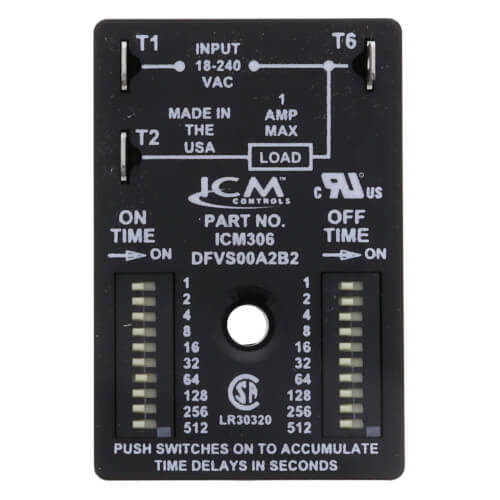

ICM306 Duty Cycle Timer, Time Delay in Seconds
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
ICM306 has been discontinued
Discontinued April 30, 2021
This product was discontinued by the manufacturer.
MANUALS (1)
Product Highlights
–
18/240 VAC
1 Amps
3" Length
1.3"
Description
–
Features
- Reliable duty cycle timer ideally suited for defrost applications
- Suitable for process equipment or applications requiring intermittent delays
- Switch-settable time delays
- Time delay in 1-1,023 seconds in 1-second intervals (ON/OFF)
- Digital timing accuracy
- Reliable solid state output
- Epoxy-encapsulated for greater reliability
- Universal voltage
- On time starts at power up
Specs
–
| Product Type: | Duty Cycle |
|---|---|
| Time Delay: | 1-1023 Sec in 1 Sec Intervals |
| Voltage: | 18/240 VAC |
| Frequency: | 50-60 Hz |
| Power Consumption: | 1 watt maximum |
| Amperage: | 1 |
| Amp Inrush: | 10 |
| Voltage Drop: | 2.5v @1amp |
| Length (Inches): | 3" |
| Width: | 2" |
| Height: | 1.3" |
| Replaces: | TSDR Series ESDR |
| OEM: | SSAC |
