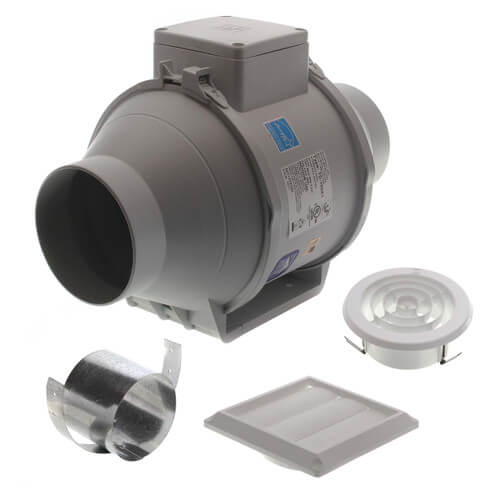

TD-MIXVENT Standard Exhaust Kit - Mixed Flow Duct Fan, 4" Duct (120V)
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='Half' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cg%3E %3Cpath fill='%23F15C02' d='M30.05,70.23l3.79-12.01L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1h1.58 L93.71,7.18c-3.58-3.82-8.66-6.23-14.28-6.23H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,5.41,2.22,10.32,5.79,13.88 L30.05,70.23z'/%3E %3C/g%3E %3Cpath fill='%23FBC8B4' d='M93.71,7.18L60.98,39.6H91.2L65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82l5.55-17.59L6.75,93.32 c3.55,3.54,8.44,5.73,13.82,5.73h58.87c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,15.4,97.01,10.69,93.71,7.18z'/%3E %3C/svg%3E){kind=small}
 --%3E %3Csvg version='1.1' id='With-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23FBC8B4' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
KIT-TD100X has been discontinued
Discontinued September 27, 2019
This product was discontinued by the manufacturer.
MANUALS (2)
Direct Replacement:
Product Highlights
–
100, 135 CFM
4"
7 Year Warranty
120v
1/25 HP
0.28 Amps
Description
–
Duct Fan, In-Line Kit, 2 Speed Mixed Flow, Fits Duct Dia 4 In, CFM @ 0.000-In SP 135/100, CFM @ 0.125-In SP 113/77, Max Inlet Temp 104 Deg F, Voltage 115, 60 Hz, Single Phase, Max Amps 0.28, Bearing Type Ball, Housing Dia 6 7/8 In, Length 7 3/8 In, Mounting Position Horizontal or Vertical, Includes 1 Intake Grill, 1 Exterior Termination Louver and Mounting Bracket.
Includes:
Features:
Includes:
- 1 TD100x exhaust fan
- 1 plastic round grille (PG-100)
- 1 exterior louvered grille (PER-100W)
- Integral mounting bracket
Features:
- Hz: 60
- Voltage: 120V
- Bearing Type: Ball
- Mounting Position: Horizontal or Vertical
- Standards: C-UL-US
- Phase: 1
- Max. Inlet Temp.: 104 Degrees F
- Motor Enclosure: Totally Enclosed
- Housing Material: Thermoplastic
- Item: Mixed Flow Duct Fan
- Speed Control: Mfr. No. 48C172
- Number of Speeds: 2
- Includes: (1) Intake Grill, (1) Exterior Termination Louver and Mounting Bracket
- CFM @ 0.000-In. SP: 135/100
- CFM @ 0.125-In. SP: 113/77
- CFM @ 0.250-In. SP: 90/48
- CFM @ 0.375-In. SP: 53
- Max. Amps: 0.28
- Max. Wattage: 33/20
- Motor HP: 1/25
- Motor RPM: 2100/1550
- Inlet and Outlet Dia.: 3-7/8"
- Fits Duct Dia.: 4"
- Flange Width: 1-1/8"
- Length: 7-3/8"
- Housing Dia.: 6-7/8"
- Mfr Number: KIT-TD100X
Specs
–
| Duct Size: | 4" |
|---|---|
| Voltage: | 120v |
| Horse Power: | 1/25 |
| Air Flow Capacity (CFM): | 100 135 |
| Max. Watts: | 33/20 |
| Bearings: | Ball |
| Amperage: | 0.28 |
| Housing Material: | Thermoplastic |
| Warranty: | 7 Year |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
2.33 out of 3Â reviews
33% would recommend this product
5 star
33%
4 star
0%
3 star
0%
2 star
0%
1 star
67%
Showing 1-3 of 3 reviews
NO !
TD-100 died with in 1st hour, SupplyHouse replaced & 2nd one died also. Lots of time wasted on job with this fan. Went back to FanTech fans.
No good
NY
6 years ago
Verified Buyer
Was this review helpful to you?
No way
SupplyHouse took great care of me as a customer. They replace a TD-100 that only ran less then an hour. And the 2nd one did the same, ran less then a hour & died. My circuit was good & I have hooked up fans before. Lost so much time with this product. Not happy with S&P fan TD-100 ?
Dead fan
NY
6 years ago
Verified Buyer
Was this review helpful to you?
I'd buy another if needed
After 25 years of being stumped by how to vent the bathroom, this product solved the issue. With joists parallel to the outer wall, our only option is going back. Still, finding the right product proved difficult. This one rocks! Easy to wire, easy and quick for flexible, insulated ducting and soon our moisture problem will be history.
Jamie
Cleveland, OH
8 years ago
Verified Buyer
Was this review helpful to you?
