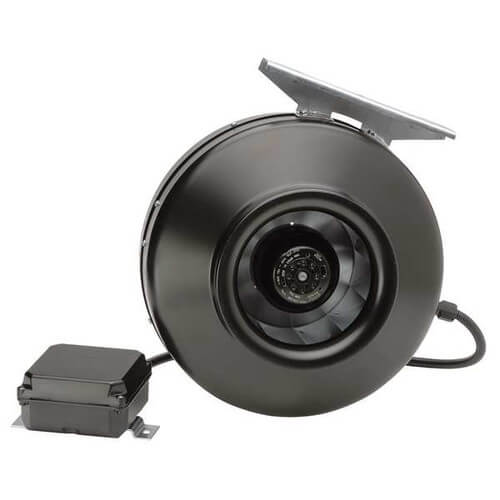

PV-POWERVENT 5" Centrifugal Duct Fan (115V, 2350 RPM, 58W)

Duct Fan, Inline Centrifugal, Fits Duct Dia. (In.) 5, CFM @ 0.000-In. SP 128, CFM @ 0.100-In. SP 110, Max. Inlet Temp. (Deg. F) 140, 115V, 60 Hz, 1 Phase, Max. Amps .483, Max. Wattage 58, Motor RPM 2350, Housing Dia. (In.) 9-1/2, Length (In.) 9-1/2, Width (In.) 9-1/2, Height (In.) 7-5/8, Includes Mounting Bracket.

Model Details:

• Exhaust air up to 942 CFM with static pressure capabilities to 1.5” w.g.
• Galvanized steel casing with black backed enamel coating
• Pre-wired junction box
• Ideal for applications where space is limited
• Non-overloading backward inclined wheel for efficiency at higher static pressures
• AMCA Seal for Air Performance
• cULus Listed

Features:

• Hz: 60
• Bearing Type: Ball
• Mounting Position: Horizontal or Vertical
• Phase: 1
• Motor Enclosure: Totally Enclosed
• Includes: Mounting Bracket
• CFM @ 0.800-In. SP: 43
• Inlet and Outlet Dia.: 5"
• Number of Speeds: 1
• CFM @ 0.750-In. SP: 47
• Fits Duct Dia.: 5"
• Motor RPM: 2350
• CFM @ 0.600-In. SP: 55
• Flange Width: 1"
• Max. Amps: 0.483
• CFM @ 0.500-In. SP: 63
• Standards: UL, HVI, AMCA
• Length: 9-1/2"
• CFM @ 0.400-In. SP: 69
• CFM @ 0.450-In. SP: 66
• Item: Inline Centrifugal Duct Fan
• CFM @ 0.375-In. SP: 74
• Voltage: 115V
• CFM @ 0.250-In. SP: 85
• Speed Control: Yes Height: 7-5/8"
• CFM @ 0.200-In. SP: 92
• Max. Wattage: 58
• CFM @ 0.125-In. SP: 104
• Housing Material: Galvanized Metal
• Max. Inlet Temp.: 140 Degrees F
• CFM @ 0.100-In. SP: 110
• Housing Finish: Black Epoxy Coating
• CFM @ 1.000-In. SP: 32
• Housing Dia.: 9-1/2"
• CFM @ 0.000-In. SP: 128
• Width: 9-1/2"

**Image may not be exact representation of product.**
