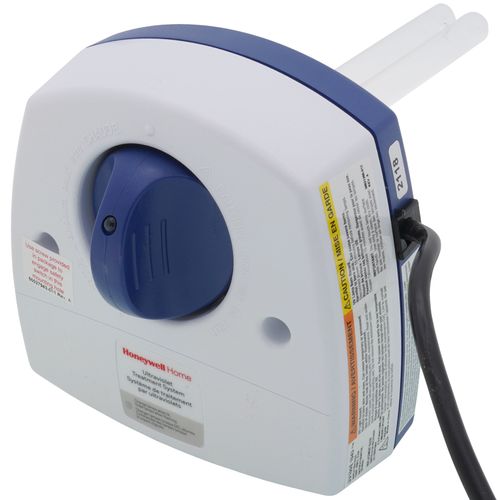

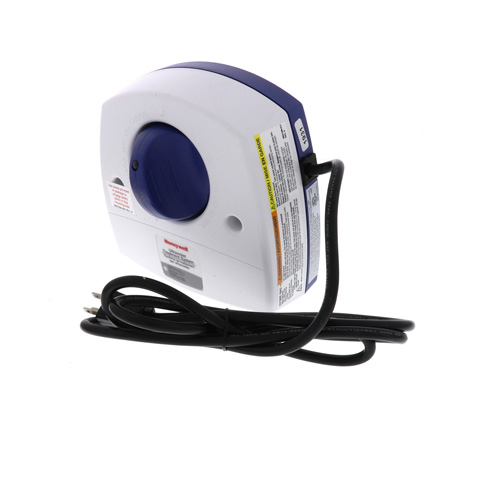

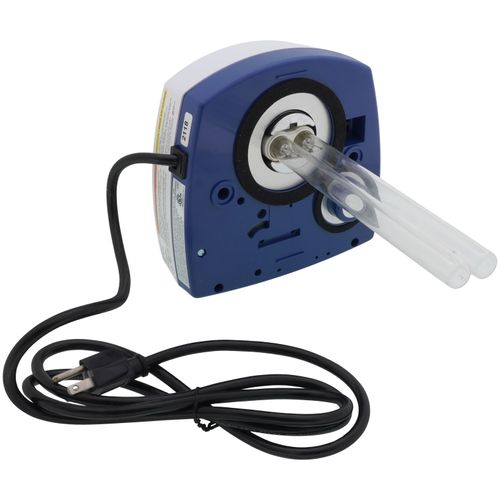

SmartLamp UV Air Treatment System, Single Lamp Return Air Model
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
MANUALS (4)
'/%3E%3C/svg%3E){kind=small}
Product Highlights
Description
- UV-C light kills airborne bacteria or surface mold.
- Continuously emits ultraviolet energy.
- UV lamp does not produce ozone.
- Sealed unit design prevents accidental installer and homeowner contact with the voltage and with the ultraviolet rays.
- Safe design prevents lamps from lighting unless the base is correctly mounted on the HVAC duct.
- Lamp light indicator to safely view the lamp operation.
- Power cord that plugs into electrical outlet.
- Quick and easy bulb replacement.
- To capture and minimize micro-organism pass-through in residential heating, ventilation and air conditioning (HVAC) systems, combine the Ultraviolet System with a high-efficiency air filtration system that includes an electronic air cleaner.
Specifications
- Description: SmartLamp Ultraviolet Air Treatment System, Single Lamp Return Air Model
- Application Type: Return Air Application
- Contaminants Reduced: Airborne Bacteria
- Electrical Ratings: 120 Vac
- Electrical Rating(Watts): 18W
- Operating Temperature (outside Duct F): 30 F to 104 F
- Operating Temperature (outside Duct C): -2 C to +40 C
- Operating Temperature (inside Duct F): 30 F to 140 F
- Operating Temperature (inside Duct C): -2 C to +60 C
Specs
| Product Type: | UV Air Purifier |
|---|---|
| Application: | Air Quality |
| Voltage: | 120v |
| Wattage: | 18 |
| Contaminants Reduced: | Airborne Bacteria Surface Mold |
| Inside Duct Temperature Range: | 30°-140°F |
| Outside Duct Temp Range (F): | 30°-104°F |
Questions?
1 Replacement Part
Need help finding a replacement part?
Product Reviews
yes I would buy this product again.
Great Product, Great Service
Would Buy again
Skeptical But Proven To Be Effective
Replacement unit
As usual, right product, fast
Great price, fast delivery, easy installation
I would buy this product again
I would buy this product again
Satisfied with item and service
Product Q&A
1 QuestionQ: Once installed, must I run my furnace-fan constantly, 24/7/365? Or, am I able to simply leave the UV Lamp "on" at all times, even though the fan is idle? Does the lamp "burn-out" any faster or slower with or without the fan continuously running?
Asked by Kathleen 12 years ago
Add your answer
This particular UV lamp is a "smart" lamp. It senses when there is airflow from your fan and turns the light on when there is air moving in the system. This features greatly extends the life of the lamp. This lamp, as well as all UV lamps, only eliminate bacteria in air that comes into contact with the UV light. Because of this, you will only be filtering the air in your house if the fan is running to circulate the air through the ducting, be this with the fan only option of your furnace or with the heat/air conditioning running.. I have installed these and other UV lights and I am very happy with the results. Rob Logan
The question is somewhat confusing. I'll will answer descriptively. After the lamp is installed its behaviour is dictated by the specific model installed. The lamp needs to be installed following the enclosed instructions. The crux is in having the lamp have a period after the installation so it can detect 'no airflow' condition, and after the air-handler starts to detect the new 'air flow' condition. Afterwards the lamp will turn on upon sensing the airflow caused by the air handler, and after the air-handler stops, the light will remain turned on for the predetermined amount of time depending on the model. When that time passes the light will turn off. If the air-handler runs continuously - the lamp will stay turned on during the whole run. It should not shorten the life of the light bulb, meaning if the life is for 2,000 hrs it should last about that length of time or longer. It is frequent turning on and off that usually shortens the expect life of any fluorescent light bulb. If the air-handler turns on and off, so will the light (turn off will be delayed based on model). Once installed there is no switch for the user to turn the light on or off - except yanking the plug out.
