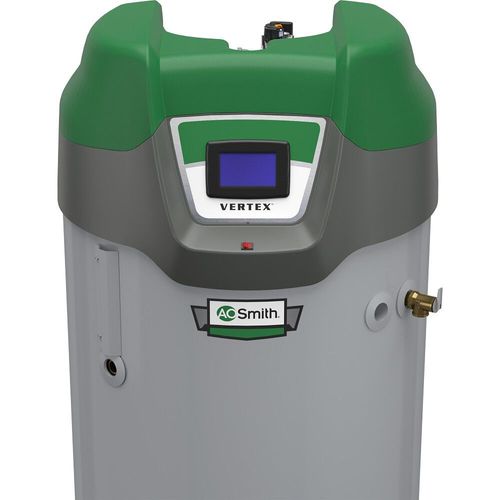

75 Gallon HDHE-75 100,000 BTU Vertex Ultra-Low NOx Power Direct Vent Residential Gas Water Heater - Tall (NG)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
MANUALS (4)
Lift Gate
Product Highlights
Description
Note: This unit is only available in Natural Gas. but field-convertible to Liquid Propane.
The Vertex 75-Gallon Ultra-Low NOx Power Direct Vent Natural Gas Water Heater offers unprecedented levels of performance to meet your hot water needs. Featuring a 75-gallon (nominal) tank and an AiQ - Adaptive Gas Technology allows you to select Natural Gas or Liquid Propane during installation, the HDHE-75 400 series Power Direct Vent delivers a thermal efficiency of 96%, a Uniform Energy Factor of 0.86, and a recovery rate of 150 gallons per hour. It carries a 8-year limited warranty, and meets Ultra-Low NOx emission requirements. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This Vertex water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel CoreGard anode rod, Blue Diamond glass lining and DynaClean automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith's ProLine water heaters are residential products built to commercial-grade standards and are only available for purchase through professional wholesalers and contractors.
Product Details:
- ENERGY STAR certified power direct vent design delivers up to 0.86 Uniform Energy Factor (96% Thermal Efficiency)
- Delivers 150-gallon first hour rating
- AiQ - Adaptive Gas Technology allows you to select Natural Gas or Liquid Propane during installation
- Advanced high efficiency condensing design delivers energy savings & continuous hot water at a constant flow of over 4 gallons per minute
- Helical coil internal heat exchanger lengthens heat transfer cycle and reduces lime & scale build-up to maintain high efficiency operation

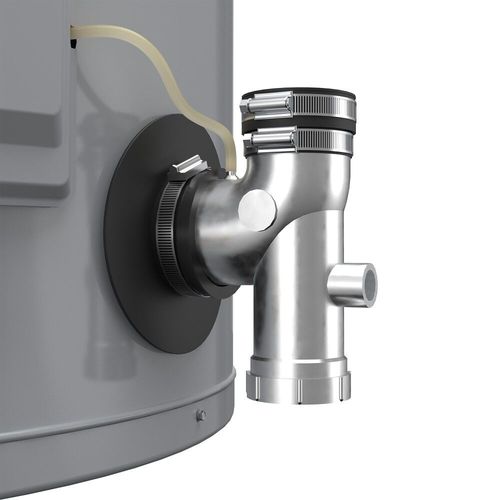

- Power direct vent design installs with 2" or 3" PVC, CPVC or polypropylene pipe terminating through outside wall
- Top fired Ultra-Low NOX gas burner, meets or exceeds emission requirements in California & Utah
- Push-button piezo ignitor makes lighting pilot fast & easy
- Protected by a CoreGard anode rod, Blue Diamond glass lining and DynaClean automatic sediment-cleaning system for long life
- 8-year limited tank and parts warranty
Specs
| 1st Hour Delivery (Gallons): | 130 |
|---|---|
| Voltage: | 120v |
| Height (Inches): | 65.25" |
| Warranty: | 8 Year Limited Tank & Parts |
| Efficiency: | 96% |
| Vent Size: | 2" 3" |
| Diameter (Inches): | 22" |
| Vent Type: | Power Direct Vent |
| Fuel Type: | Natural Gas |
| Weight (lbs): | 388 lbs |
| Recovery 90°F Rise: | 129 GPH |
| BTU Input: | 100000 |
| Application: | Plumbing |
| Energy Star Rated: | Yes |
| ASME: | No |
| Capacity (Gallons): | 75 |
