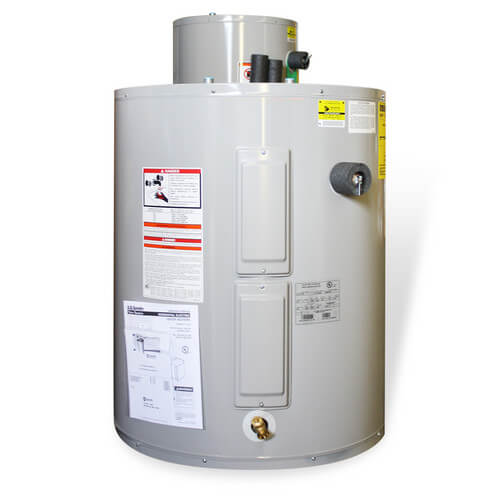

38 Gallon ProMax Residential Electric Water Heater - Lowboy Model
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
PNL-40 has been discontinued
Discontinued January 25, 2017
This product was discontinued by the manufacturer.
MANUALS (4)
This item replaces: PCL-50
Direct Replacement:
36 Gallon PNL-36 ProLine Res. Electric Water Heater w/ Top Connections, 10 Yr. Warranty - Lowboy (4.5kW, 240V)
Backorder
Get it Thu, Jul 9 - Mon, Aug 10
Product Highlights
–
Electric
10 Year Tank/6 Year Parts Limited Warranty
38 Gallons
33.5" Height
No
26" Diameter
Description
–
The ProMax® Lowboy Side Connect electric water heater is designed to take up as little room as possible and is the ideal choice for when installation space is limited to tight spaces such as under counters and in crawl spaces.
With a 28-gallon tank delivering 4,500 watts, the PNL-30 delivers a first hour rating of 41 gallons at an Energy Factor of 0.95. The Coregard™ sacrificial anode helps protect the tank from the corrosive effects of water, and is accompanied by a 10-year limited tank warranty.
Features:
With a 28-gallon tank delivering 4,500 watts, the PNL-30 delivers a first hour rating of 41 gallons at an Energy Factor of 0.95. The Coregard™ sacrificial anode helps protect the tank from the corrosive effects of water, and is accompanied by a 10-year limited tank warranty.
Features:
- Dual 5500 watt elements for the fastest recovery and reliable operation.
- Incoloy stainless steel elements last longer than standard cooper elements.
- Helps reduce lime and sediment buildup, maximizes hot water output. Made from long lasting PEX cross-linked polymer.
- Eco-friendly non-CFC foam insulation, heat traps and specially designed combustion chamber combine to produce a high
- Energy Factor for maximum savings on operating costs.
- Our anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods.
Specs
–
| Intended Household: | 3-4 Person |
|---|---|
| Application: | Plumbing |
| Capacity (Gallons): | 38 |
| Fuel Type: | Electric |
| Number of Elements: | 2 |
| Voltage: | 240v |
| Max Input (KW): | 6 |
| Height (Inches): | 33.5" |
| Diameter (Inches): | 26" |
| Depth (Inches): | 26" |
| Weight (lbs): | 118 lbs |
| 1st Hour Delivery (Gallons): | 44 |
| Recovery 90°F Rise: | 21 GPH |
| R-Value: | 16 |
| Warranty: | 10 Year Tank/6 Year Parts Limited |
| Wattage: | 4500 |
| Energy Factor: | 0.95 |
| Energy Star Rated: | No |
