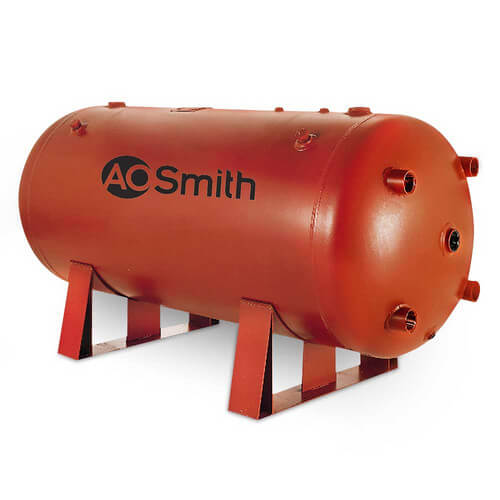

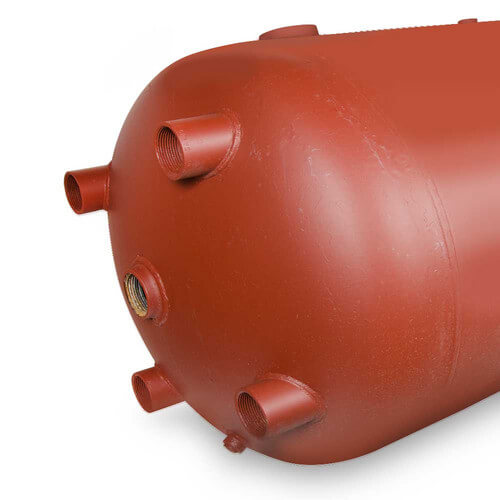

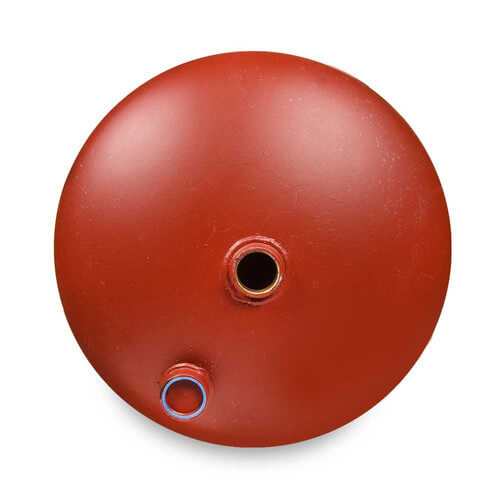

500 Gallon Uninsulated ASME Commercial Bare Storage Tank (Horizontal Only)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
' fill='%23F15C02' d='M49 0C21.938 0 0 21.938 0 49s21.938 49 49 49 49-21.938 49-49S76.062 0 49 0m0 82.709a7.54 7.54 0 1 1 0-15.08 7.54 7.54 0 0 1 0 15.08m7.54-28.412a7.541 7.541 0 0 1-15.08 0V22.831a7.54 7.54 0 0 1 15.08 0v31.466z'/%3E%3C/svg%3E)
TL-500A has been discontinued
Discontinued May 25, 2018
This product was discontinued by the manufacturer.
MANUALS (3)
Product Highlights
–
500 Gallons
Vertical
121-3/4"
5 Year Limited Tank Warranty
36" Diameter
Description
–
NOTE: Image Depicts Storage Tank with Vertical Installation. TL-500A Requires Horizontal Installation.
AO Smith commercial hot water storage tanks are designed for use with gas/electric water heaters and boilers to provide additional hot water storage capacity for systems with large hot water draws.
Features
AO Smith commercial hot water storage tanks are designed for use with gas/electric water heaters and boilers to provide additional hot water storage capacity for systems with large hot water draws.
Features
- All internal surfaces exposed to water are glass-lined per ASME HLW procedures, using an NSF-approved glass-lining compound
- Un-Jacketed
- Magnesium anodes - for extra protection against corrosion
- Threaded leg sockets for vertical installation
- Prime coated exterior of alkyd type paint
- Horizontal Mounting ONLY - The TL-500A has proper inlet/outlet openings that allow for horizontal installation, which is required for this tank.
- Optional tank saddles available - 2 per horizontal tank required (Not Included)
- Five year limited tank warranty
Specs
–
| Capacity (Gallons): | 500 |
|---|---|
| Mount: | Vertical |
| Application: | Commercial |
| Type: | Un-Jacketed |
| Length: | 121-3/4" |
| Warranty: | 5 Year Limited Tank |
| Diameter (Inches): | 36" |
| Working Pressure (PSI): | 125 psi |
| Weight (lbs): | 841 lbs |
