18" x 18" Fire Rated Access Door (Stainless Steel)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$503.69 each
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
MANUALS (2)
This item replaces: FB-5060-18X18-S
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
18" x 18"
Stainless Steel
Description
–
Access Door Specifications
For 18-3/8" x 18-3/8" Wall Opening
Material : 16 gage mounting frame.
Door : Flush to frame with reinforced edges.
Frame: Flanged to be 1" wide, mounting frame to have anchor straps. (optional).
Hinge: Concealed.
Access Door Fire Rating : UL - 1-1/2 hour "B" label. ULC - 2 hour "B" label. (optional)

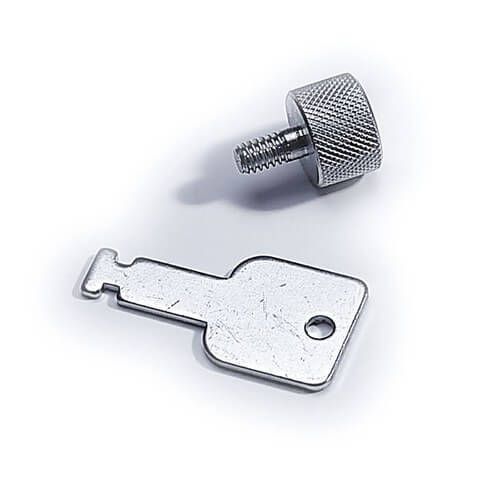

Access Door Latch : Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim cylinder locks.
Access Door Finish : Steel: 5-stage iron phosphate preparation with prime coat of gray baked enamel. Stainless Steel: #4 satin polish.
NOTE: For Mortise cylinder locks, order SKU: FW-5050-18x18-S
For 18-3/8" x 18-3/8" Wall Opening
Material : 16 gage mounting frame.
Door : Flush to frame with reinforced edges.
Frame: Flanged to be 1" wide, mounting frame to have anchor straps. (optional).
Hinge: Concealed.
Access Door Fire Rating : UL - 1-1/2 hour "B" label. ULC - 2 hour "B" label. (optional)
Access Door Latch : Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim cylinder locks.
Access Door Finish : Steel: 5-stage iron phosphate preparation with prime coat of gray baked enamel. Stainless Steel: #4 satin polish.
NOTE: For Mortise cylinder locks, order SKU: FW-5050-18x18-S
Specs
–
| Size: | 18" x 18" |
|---|---|
| Wall Opening (Inches): | 18-3/8" 18-3/8" x 18-3/8" |
| Application: | Wall |
| Material: | Stainless Steel |
| Type: | Fire Rated Walls |
| Number of Latches: | 1 |
| Latch: | Knurled Knob or Flush Key |
Contact
+
Happy Independence Day!
Our Customer Support will be closed today in honor of Independence Day. We will be back tomorrow to answer your questions.
Call or text 888-757-4774
Special Hours
Closed Now
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Compare Similar Products
Brand
Size
Wall Opening (Inches)
Application
Material
Type
CURRENT ITEM
18" x 18"
18-3/8"
18-3/8" x 18-3/8"
18-3/8" x 18-3/8"
Wall
Stainless Steel
Fire Rated Walls
Product Q&A
1 Question1 Question
Q: What is the total depth of the door and frame front to back?
Asked by Breck 15 years ago
Add your answer
Verified Reply- PexSupply StaffThe depth is approximately 1 1/4".
