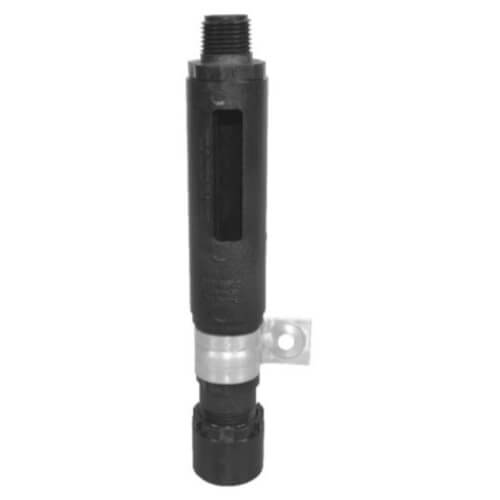

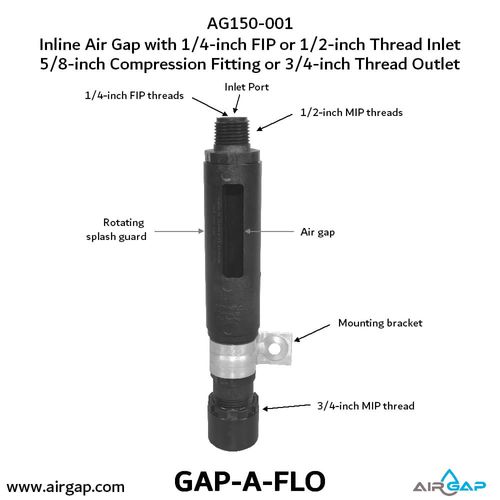

Gap-A-Flo In-Line Air Gap w/ 1/4" FIP or 1/2" MIP Inlet

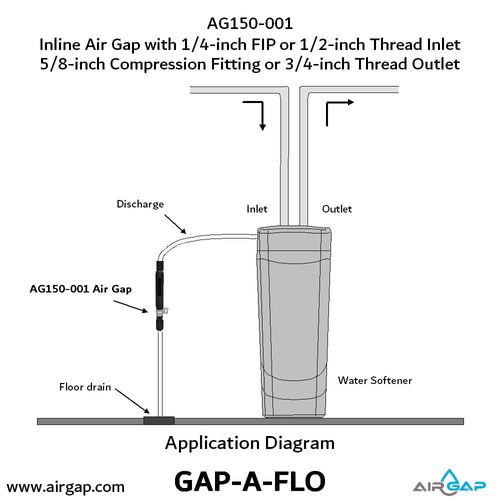

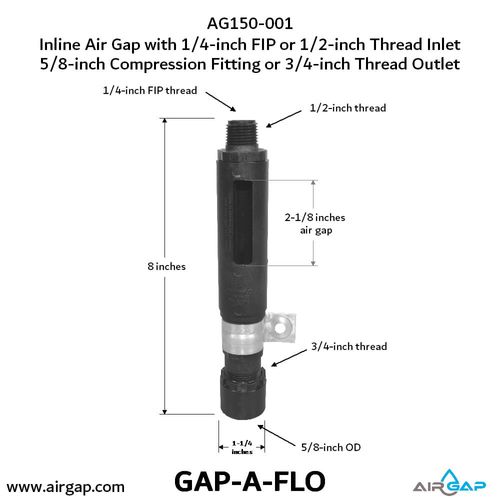

The AG150 series inline water softener or water filter air gaps are designed to provide a convenient way to install air gap which may be tilted up to 45 degrees. This air gap can be connected using flex tubing or a rigid PVC pipe. The unique design provides a completely protected airgap without any possibility of water splashing out. The rotating protection sleeve assures long and trouble-free operation and impedes insects’ ingress. The inlet can accommodate 1/4-inch FIP adapters or 1/2" threaded PVC adapters, the outlet can accommodate 3/4" threaded PVC adapters or 5/8" OD tubing.

It is easy to use and legal to install in any state. The AG150 series air gap is listed by UPC® and tested for compliance with IPC® and NSF® standards.

Features

• Provides an in-line air gap
• Unit can be tilted up to 45° angle if needed, (window opening on top side)
• Easy vertical wall mounting with included “Jiffy Clip”

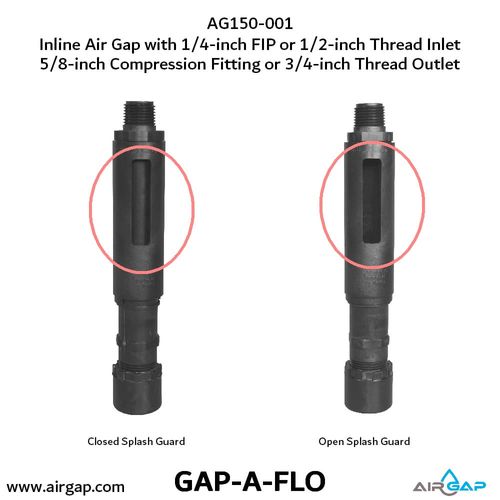

• Incorporates a rotatable splash guard/splatter shield
• Recommended usage up to 7 gallons/minute (26.5 liters/minute)

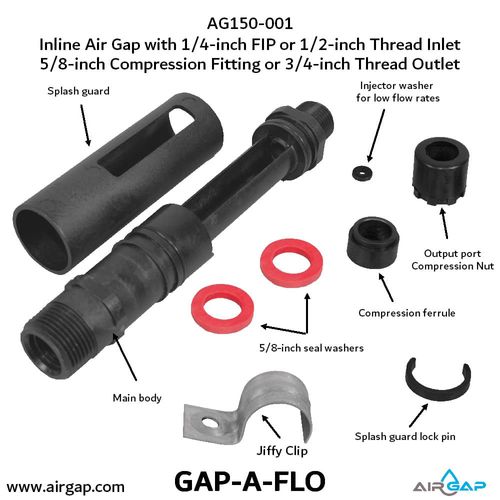

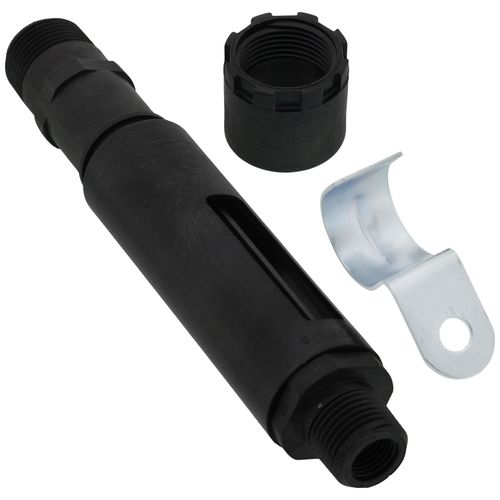

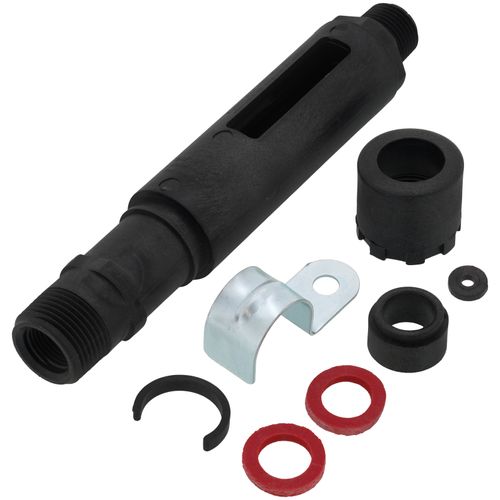

Includes

• Splash guard
• 5/8" seal washers
• Injector washer
• Jiffy Clip
