Description

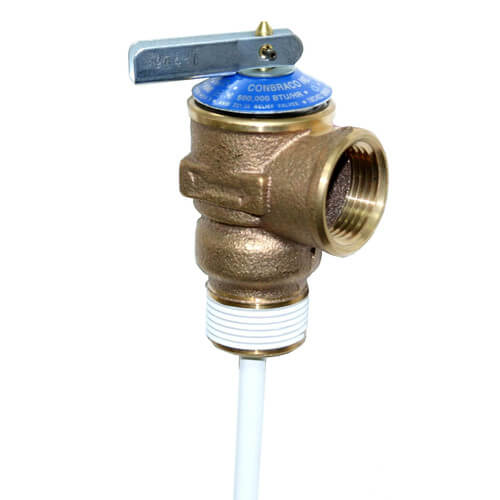

Bronze automatic temperature and pressure relief valves used for protection of hot water heaters and storage tanks. Protects against elevated temperature and pressure

Features:
  • ASME CAPACITY BTU/Hr - 500,00
  • ASME Section IV Certified Capacity (3/4")
  • CSA Listed and Certified to ANSI Z21.22
  • 125 and 150 psig Set Pressures @ 210°F max
  • Corrosion Resistant Construction
  • Coated Element Protects Against Corrosion
  • Extended Body Option for Insulated Vessels
  • Made in the USA
Hide Description
Manuals (1)
Specs
Size:

3/4"

Preset PSI Setting:

125 psi

Thermostat Length:

3"

Width (Inches):

1-1/8"

Height (Inches):

6.125"

7.5"

Max Temp (F):

210°F

Material:

Bronze

Shank Length:

Standard

ASME Rating (BTU/HR):

500000

CSA Rating (BTU/HR):

105000

Inlet Type:

MNPT

Outlet Type:

FNPT

×
