1-1/4" TPC 3,070,000 BTU Capacity T & P Relief Valve w/ 4" Element

Brand:
Apollo Valves
SKU:
18C5314125
Rating:
(0)
Q&A:
(0)
1-1/4" TPC 3,070,000 BTU Capacity T & P Relief Valve w/ 4" Element
Magnifying glass
Hover image to zoom
$521.67 each
Backorder
Backorder
Get it Tue, Aug 4 - Tue, Sep 1
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Size
1-1/4"
Product Highlight: Inlet Type
MNPT
Product Highlight: Outlet Type
FNPT
Product Highlight: Max Temp (F)
210°F Max Temp
Product Highlight: Height (Inches)
10.25" Height
Product Highlight: Width (Inches)
1-3/4" Width

Description

–

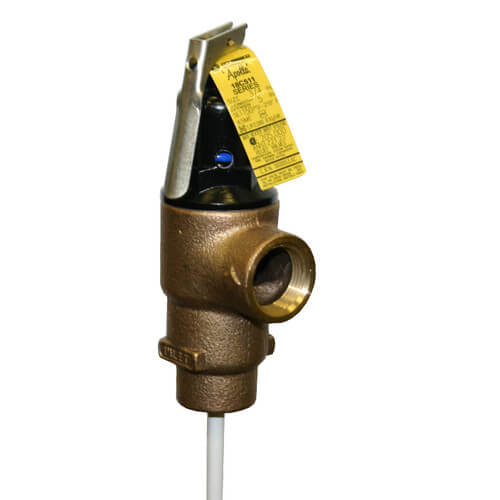

The Apollo® TPC bronze automatic temperature and pressure relief valves are used for protection of high capacity commercial hot water heaters and storage tanks.

Features:
  • ASME Section IV Certified Capacity
  • 3/4" through 2" NPT Connections
  • CSA Listed and Certified to ANSI Z21.22
  • 125 and 150 psig Set Pressures @ 210°F max
  • Coated Element Protects Against Corrosion
  • SS Elements (1-1/2" and 2")

Materials:
  • Body: ASTM B584 Bronze
  • Seat Stem: ASTM B16, Brass
  • Seat disc: Silicone
  • Element Tube Coating: Nylon
  • Element Spring: Type 304 SST
  • Element Pin: Type 302 SST

Specs

–
Size:

1-1/4"

Preset PSI Setting:

125 psi

Height (Inches):

10.25"

Width (Inches):

1-3/4"

Thermostat Length:

4"

Max Temp (F):

210°F

Material:

Bronze

Shank Length:

Standard

CSA Rating (BTU/HR):

750000

ASME Rating (BTU/HR):

3070000

Inlet Type:

MNPT

Outlet Type:

FNPT
