Product Highlights
–
1"
Threaded Connection
Aluminum
Description
–

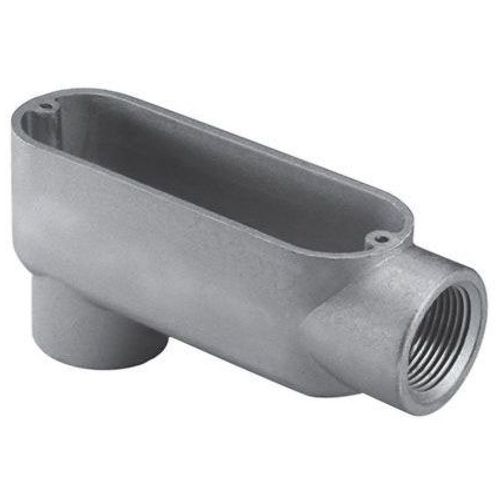

This item is a Form 7, 1" Rigid Threaded LB Conduit Body - Aluminum manufactured by Appleton.
Features:
Features:
- Conduit outlet body
- access opening back
- configuration lb
- cover type epoxy powder coated copper free cast aluminum
- hub location 90 degree
- number of hubs 2
- hub size 1 inch
- size 6 inch l x 2.88 inch h
- installation threaded
- material epoxy powder coated copper free cast aluminum (body), neoprene (gasket), stainless steel (cover screw)
- form type form 7
- approval ul 514a/514b, csa c22.2
- used on rigid/imc conduit
- applicable standard nema fb-1
- capacity 11 cu inchServe as Pulling Fitting
- Make Bends in Conduit System
- Provide Openings for Splicing
- Connect and Change Direction of Conduit Runs
- Allow Connections for Branch Runs
- Permit Access to Conductors for Maintenance
- Smooth, Rounded Integral Bushings in Hubs Protect Conductor Insulation
- Accurately Tapped, Tapered Threads for Tight, Rigid Joints and Excellent Ground Continuity
- Wedge-Lock Form-in-Place Covers with Integral Gasket are Approved for Use in Wet Locations
- Grayloy-Iron Bodies with Cast Covers and Gasket are Approved for Use in Wet Locations
- Unique Wedge-Lock Clip Cover Design Allows Easy Removal at any Later Time, without Damaging the Conduit Body
- The Cover is Secured with Clips, not Screws
- Completely Interchangeable with Competitors form 7 Bodies, Gaskets and Covers
- Equivalent FM7 and Form 7 Units have Identical Applications and Installation Dimensions
- Flat Back Design Provides Greater Cubic Content for Easier Wire Pulling, and More Room for Splicing
- Fits Flush and Snug Against Flat Surfaces for More Stable Installation
- Smooth Hub Bushings and Cover Openings Protect Conductor Insulation
- Smooth Hub Openings Allow Easy Conduit Joining
- Pan-Head Cover Screws Secure Cover Clips and Provide Superior Screwdriver Seating and Torque
- Cover Screws and Clips are Captive to Prevent Loss
Specs
–
| Product Type: | Conduit Body |
|---|---|
| Size: | 1" |
| Connection Type: | Threaded |
| Material: | Aluminum |
