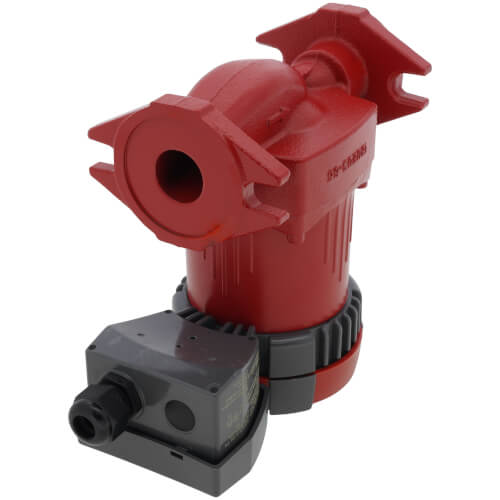

Compass H Cast Iron Wet-Rotor Circulator Pump, Flanged, 0-20 GPM
 --%3E %3Csvg version='1.1' id='Fill' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23F15C02' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$489.29 each
In Stock
Order by 6PM, receive Monday
MANUALS (4)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
115V
1/25 HP
5 Year Warranty
Flanged x Flanged Connection
20 MAX GPM
150 MAX PSI
Description
–
Product Features
- Wide performance range (max head 20 ft (6.1m); max flow 20 USgpm (4.54 m3/h))
- Large wiring chamber and front-mounted terminal block for much easier and faster installation compared to any other circulator currently available
- Easy and quick setup of energy-saving features: eight operation modes with patented "Auto" algorithm, 2 Sensorless modes, 2 constant pressure modes and 3 fixed speed modes
- Design Envelope Intelligent Variable Speed technology, combined with ECM motors, saves 50% or more in operating cost over fixed speed circulators
Specs
–
| Max Flow (GPM): | 20 |
|---|---|
| Flow Rate (GPM): | 0-20 |
| Horse Power: | 1/25 |
| Max Head (Ft): | 20 |
| Voltage: | 115V |
| Hertz: | 60 |
| Material: | Cast Iron |
| Max Fluid Temp: | 230°F |
| Connection Type: | Flanged x Flanged |
| Type: | Pump |
| Max Pressure (PSI): | 150 |
| Warranty: | 5 Year |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Reviews
5 out of 2 reviews
100% would recommend this product
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
Customer Images
Showing 1-2 of 2 reviews
Excellent pump

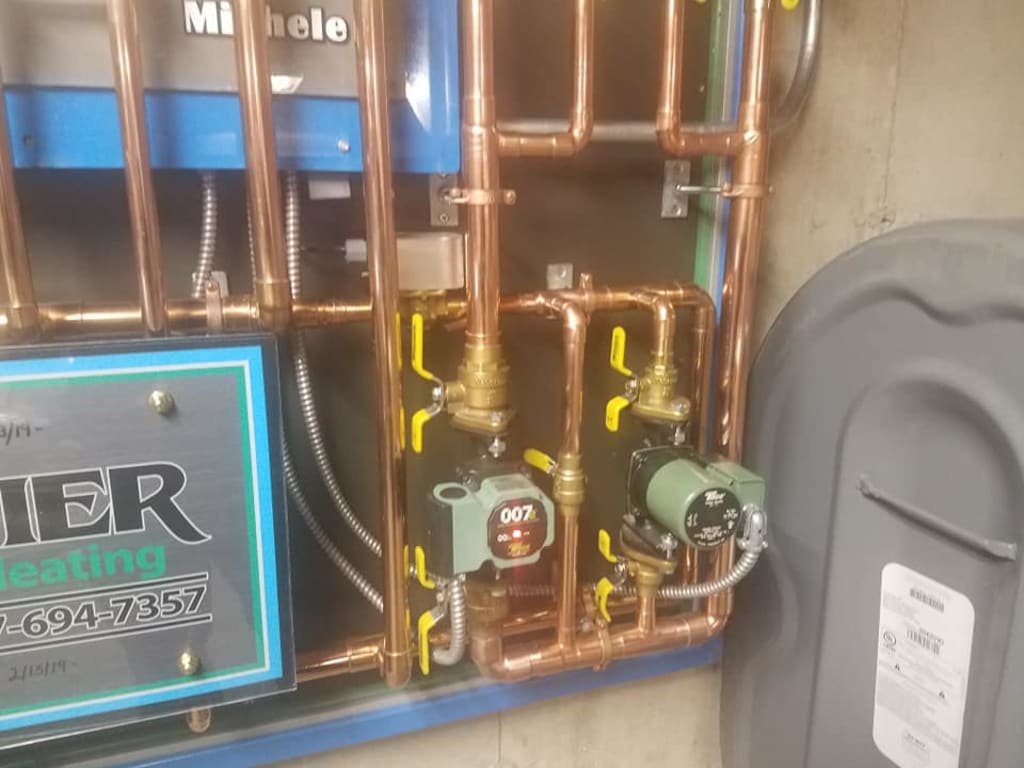

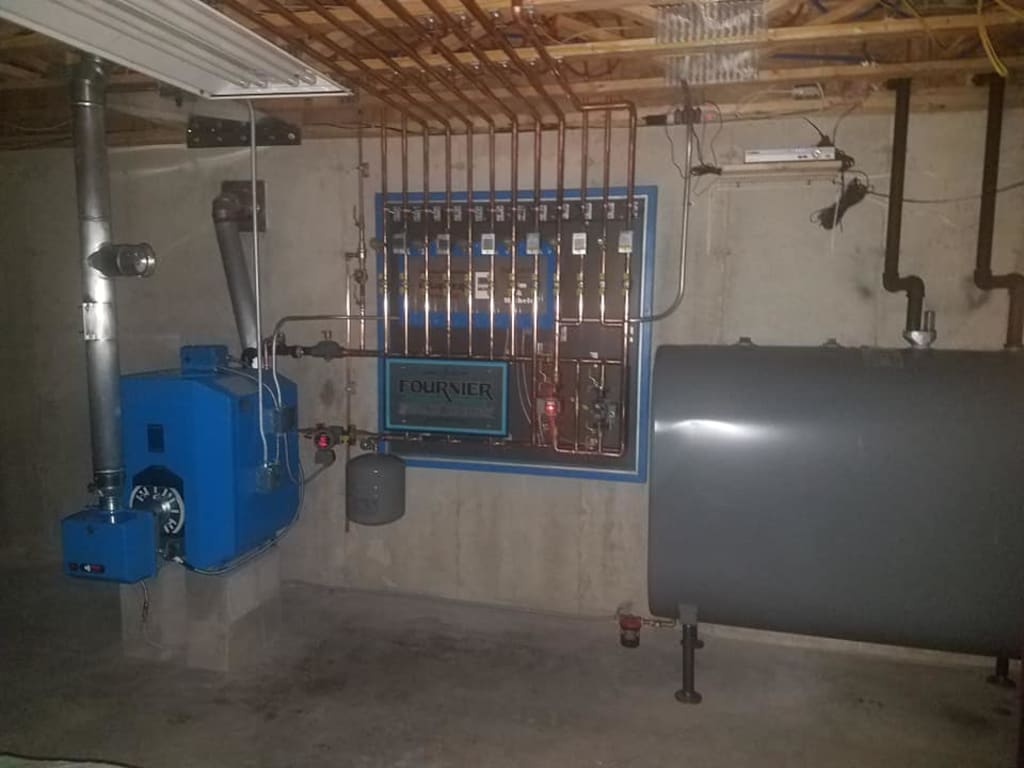

I installed one of these in a very high end system roughly 4 years ago and I've never had to go back yet. Customer is very happy and works very well in the system! I would and will buy again!
Nick
Eagle lake maine
4 years ago
Was this review helpful to you?
Good pump!
Fast shipping. Easy to install.
Joe
Rio Rancho, NM
4 years ago
Verified Buyer
Was this review helpful to you?
