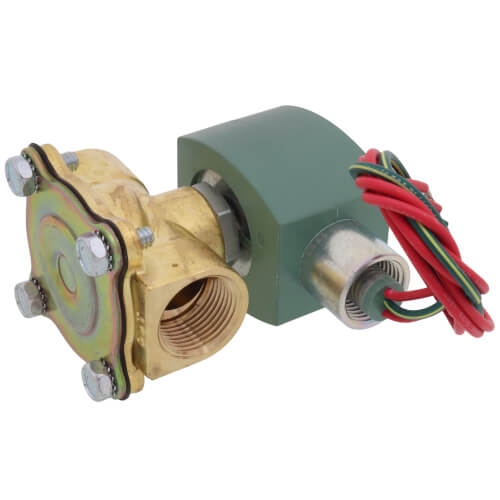

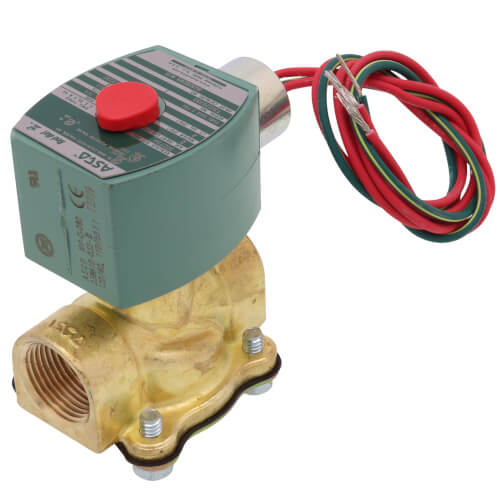

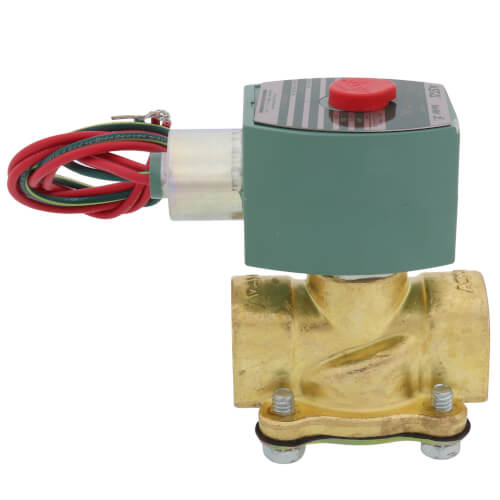

3/4" 2-Way Normally Open Low Pressure Gas Solenoid Valve (295,000 BTU)
 --%3E %3Csvg version='1.1' id='No-RB' xmlns='http://www.w3.org/2000/svg' xmlns:xlink='http://www.w3.org/1999/xlink' x='0px' y='0px' viewBox='0 0 100 100' enable-background='new 0 0 100 100' xml:space='preserve'%3E %3Cpath fill='%23CECECE' d='M79.44,0.95H20.56C9.78,0.95,0.95,9.78,0.95,20.56v58.87c0,10.79,8.82,19.61,19.61,19.61h58.87 c10.79,0,19.61-8.83,19.61-19.61V20.56C99.05,9.78,90.22,0.95,79.44,0.95z M65.38,58.24l9.38,29.58L49.69,69.78L24.5,87.82 l9.34-29.6L8.8,39.6l30.73-0.17c0,0,6.98-19.61,10-28.93c0.54,1.36,9.88,29.1,9.88,29.1H91.2L65.38,58.24z'/%3E %3C/svg%3E){kind=small}
Hover image to zoom
$374.61 each
In Stock
Get 15 Fri, Jun 12
MANUALS (1)
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days
Product Highlights
–
Normally Open
120v
3/4"
2-Way
Threaded Connection
5.5 Cv
Description
–
Features:
- Operate at low pressures: no minimum required; up to 15 psi (1 bar) maximum differential
- Normally closed or normally open operation
- Widely used for dispensing, collating, gas shutoff, vacuum holding, and tank draining applications
- Normally open valve well suited for venting systems
- 2-Way Combustion Shut-Off Valves
- Valves shut down automatically in the event of a power interruption; ideal for both pilots and main fuel supplies.
- Typical combustible media include natural gas and oil.
Specs
–
| Size: | 3/4" |
|---|---|
| Flow Capacity (Cv): | 5.5 |
| Capacity: | 295500 BTU |
| Max Temp (F): | 180°F |
| Body Pattern: | 2-Way |
| Position: | Normally Open |
| Material: | Stainless Steel |
| Ambient Temperature: | 32°F to 125°F (AC) 32°F to 104°F (DC) |
| Wattage: | 6.1 |
| Connection Type: | Threaded |
| Voltage: | 120v |
| Application: | Plumbing |
| Flow type: | High Flow |
Questions?
Speak with a real person who will go out of the way to help!
Call or text 888-757-4774
Monday – Thursday
8am–7:45pm
Friday
9am–7:45pm
Saturday – Sunday
9am–5:45pm
Product Q&A
1 Question1 Question
Q: In need a valve that will close when there is an interruption in the gas flow for a 3/4" low pressure natural gas line. This line serves a commercial gas stove where the six pilot light flames are always on. Should there be an interruption in the gas flow the pilot lights would go off and when the gas pressure resumes, gas will fill the room from the 6 pilots. Do you have a devise that will work?
Asked by Dave 2 years ago
Add your answer
Verified Reply- SupplyHouse StaffHi Dave, thanks for writing in. These valves will only open/close when there is an interruption to the power, not an interruption to the media flow. This being the case, unfortunately it does not look like we have anything that will fit those needs.
