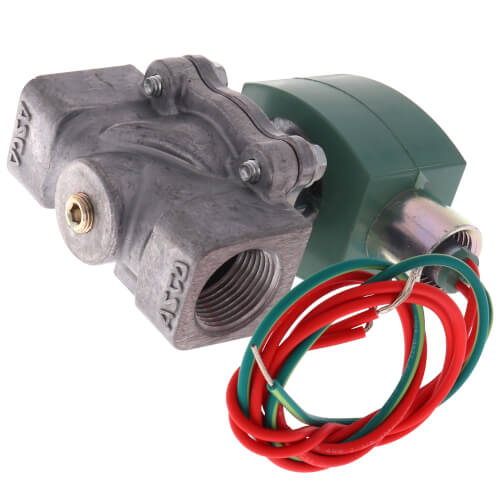

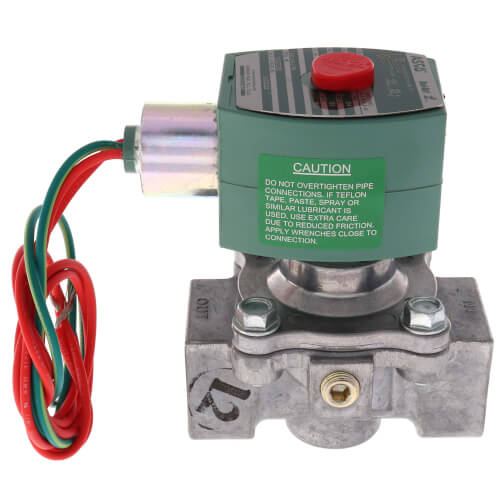

Main product image of 3/4" Normally Closed Gas Shutoff Valve, 24v (512,000 BTU)
Magnifying glass
Hover image to zoom

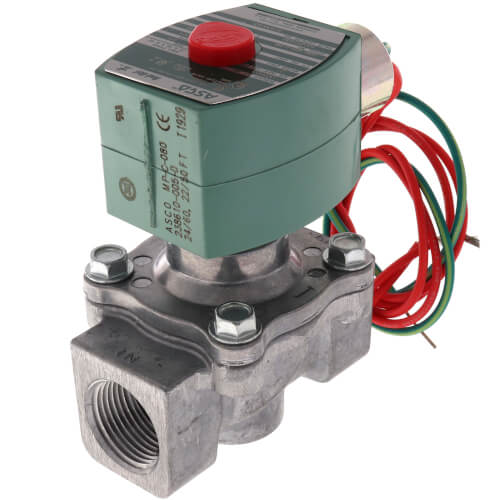

3/4" Normally Closed Gas Shutoff Valve, 24v (512,000 BTU)

Brand:
Asco RedHat
SKU:
8040G023-24V
Rating:
(0)
Q&A:
(0)
3/4" Normally Closed Gas Shutoff Valve, 24v (512,000 BTU)
Magnifying glass
Hover image to zoom
$250.47 each
In Stock
In Stock
Get 8 Tue, Jun 30
Order by today, receive Tuesday
This item replaces: 8040G23-24V
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Position
Normally Closed
Product Highlight: Voltage
24V
Product Highlight: Size
3/4"
Product Highlight: Body Pattern
2-Way
Product Highlight: Flow Capacity (Cv)
9.5 Cv
Product Highlight: Max Temp (F)
125°F Max Temp

Description

–
Aluminum valves can be used in both double block and vent gas burners.

Features
  • 2-way normally closed operation
  • For gas pilot or main control of commercial and industrial gas burners
  • Valves provided with 1/8" NPT upstream and
  • Downstream pipe taps with plugs for routine testing
  • Mountable in any position
Valve Response Time: Opening Time: Less than 1 second; Closing Time: Less than 1 second

Specs

–
Capacity:

512000 BTU

Size:

3/4"

Fluid Temperature Range:

-40 F to 125 F

Flow Capacity (Cv):

9.5

Voltage:

24V

Max Temp (F):

125°F

Position:

Normally Closed

Flow type:

High Flow

Wattage:

10.1

Body Pattern:

2-Way

Features:

NEMA 4

NEMA 4X
