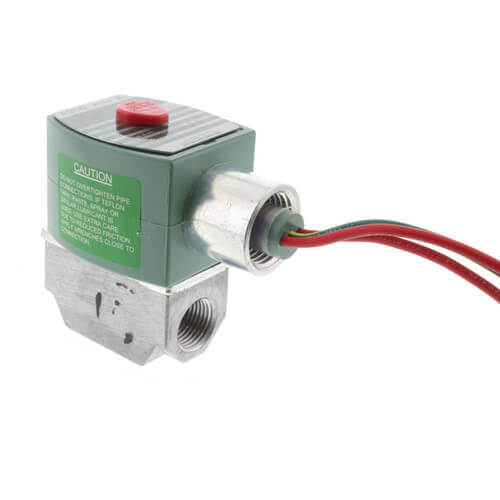

Main product image of 3/8" Normally Closed Gas Shutoff Valve, 1.2 CV (64,400 BTU)
Magnifying glass
Hover image to zoom

3/8" Normally Closed Gas Shutoff Valve, 1.2 CV (64,400 BTU)

SKU:
8040H008
Rating:
(0)
Q&A:
(0)
3/8" Normally Closed Gas Shutoff Valve, 1.2 CV (64,400 BTU)
Magnifying glass
Hover image to zoom
$126.08 each
In Stock
In Stock
Get 25 Tomorrow, Nov 19
Order by 6PM, receive Tomorrow
Free Shipping This item ships free
Easy Returns No restocking fee for 90 days

Product Highlights

–
Product Highlight: Position
Normally Closed
Product Highlight: Voltage
120v
Product Highlight: Size
3/8"
Product Highlight: Body Pattern
2-Way
Product Highlight: Flow Capacity (Cv)
1.2 Cv
Product Highlight: Max Temp (F)
125°F Max Temp

Description

–
Aluminum valves can be used in both double block and vent gas burners.

Features
  • 2-way normally closed operation
  • For gas pilot or main control of commercial and industrial gas burners
  • Valves provided with 1/8" NPT upstream and
  • Downstream pipe taps with plugs for routine testing
  • Mountable in any position
Valve Response Time: Opening Time: Less than 1 second; Closing Time: Less than 1 second

Specs

–
Size:

3/8"

Fluid Temperature Range:

-40 F to 125 F

Flow Capacity (Cv):

1.2

Capacity:

64400 BTU

Voltage:

120v

Max Temp (F):

125°F

Position:

Normally Closed

Flow type:

High Flow

Wattage:

6.1

Body Pattern:

2-Way

Features:

NEMA 4

NEMA 4X
