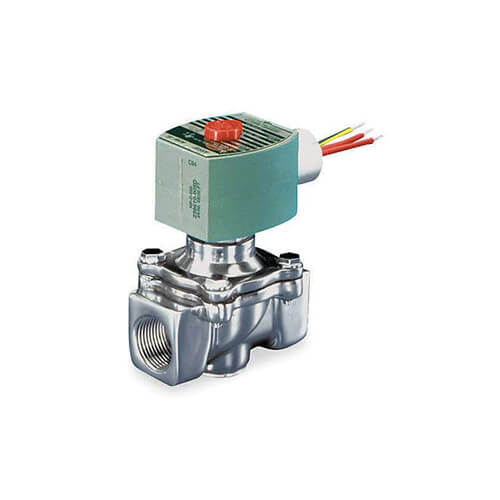

Main product image of 3/8" Normally Closed Gas Shutoff Valve, 1.2 CV (64,400 BTU)

Hover image to zoom

3/8" Normally Closed Gas Shutoff Valve, 1.2 CV (64,400 BTU)

Name: 3/8" Normally Closed Gas Shutoff Valve, 1.2 CV (64,400 BTU)
Brand: Asco RedHat
SKU: 8040H8
Price: 65.95 USD
Availability: OutOfStock

Brand:

Asco RedHat

SKU:

8040H8

Rating:

(0)

Q&A:

(0)

3/8" Normally Closed Gas Shutoff Valve, 1.2 CV (64,400 BTU)

Hover image to zoom

8040H8 has been discontinued

Discontinued October 20, 2013

This product was discontinued because the part number was changed by the manufacturer. No modifications were made to the replacement product.

MANUALS (1)

Submittal Sheet

Direct Replacement:

3/8" Normally Closed Gas Shutoff Valve, 1.2 CV (64,400 BTU)

Brand:

Asco RedHat

SKU:8040H008

(0)

Order by 6PM, receive 20 by Tomorrow

VIEW REPLACEMENT

Product Highlights

–

Normally Closed

120v

3/8"

2-Way

1.2 Cv

125°F Max Temp

Description

–

Aluminum valves can be used in both double block and vent gas burners.

Features

2-way normally closed operation
For gas pilot or main control of commercial and industrial gas burners
Valves provided with 1/8" NPT upstream and
Downstream pipe taps with plugs for routine testing
Mountable in any position

Valve Response Time: Opening Time: Less than 1 second; Closing Time: Less than 1 second

Specs

–

Size:	3/8"
Fluid Temperature Range:	-40 F to 125 F
Flow Capacity (Cv):	1.2
Capacity:	64400 BTU
Voltage:	120v
Max Temp (F):	125°F
Position:	Normally Closed
Flow type:	High Flow
Wattage:	6.1
Body Pattern:	2-Way
Features:	NEMA 4 NEMA 4X
